Name: CNY64A
Brand: Vishay Semiconductor Opto Division
SKU: CNY64A
Price: 2.45 USD
Availability: InStock

REF: CNY64A Vishay Semiconductor Opto Division

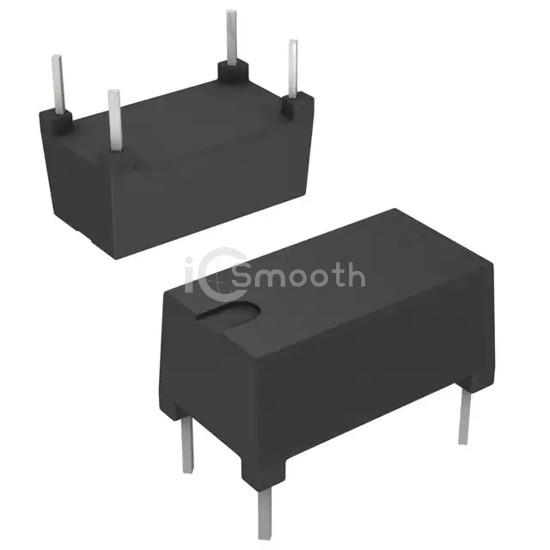

CNY64A

Vishay Semiconductor Opto Division

OPTOISOLATOR 8.2KV TRANS 4-DIP

CNY64A is a Optoisolators - Transistor, Photovoltaic Output manufactured by Vishay Semiconductor Opto Division. OPTOISOLATOR 8.2KV TRANS 4-DIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 85°C, voltage - forward (vf) (typ) 1.32V, package / case 4-DIP (0.200", 5.08mm).

Datasheet Request a Quote

In Stock: 6,576

Tiered Pricing USD

1+ $2.4500 —

40+ $1.4980 -39%

120+ $1.3377 -45%

520+ $1.1792 -52%

1,000+ $1.1244 -54%

2,000+ $1.0751 -56%

5,000+ $1.0213 -58%

10,000+ $0.9878 -60% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	8200Vrms
Current Transfer Ratio (Min)	63% @ 10mA
Current Transfer Ratio (Max)	125% @ 10mA
Turn On / Turn Off Time (Typ)	5µs, 3µs
Rise / Fall Time (Typ)	2.4µs, 2.7µs
Input Type	DC
Output Type	Transistor

Voltage - Output (Max)	32V
Current - Output / Channel	50mA
Voltage - Forward (Vf) (Typ)	1.32V
Current - DC Forward (If) (Max)	75 mA
Vce Saturation (Max)	300mV
Operating Temperature	-55°C ~ 85°C
Mounting Type	Through Hole
Package / Case	4-DIP (0.200", 5.08mm)
Supplier Device Package	4-DIP
