Name: CNY64
Brand: Vishay Semiconductor Opto Division
SKU: CNY64
Price: 2.35 USD
Availability: InStock

REF: CNY64 Vishay Semiconductor Opto Division

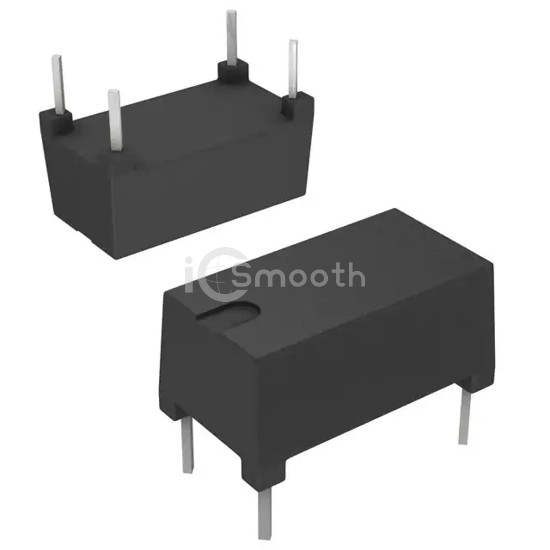

CNY64

Vishay Semiconductor Opto Division

OPTOISOLATOR 8.2KV TRANS 4-DIP

CNY64 is a Optoisolators - Transistor, Photovoltaic Output manufactured by Vishay Semiconductor Opto Division. OPTOISOLATOR 8.2KV TRANS 4-DIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 85°C, voltage - forward (vf) (typ) 1.25V, package / case 4-DIP (0.200", 5.08mm).

Datasheet Request a Quote

In Stock: 1,205

Tiered Pricing USD

1+ $2.3500 —

10+ $1.6910 -28%

100+ $1.2997 -45%

500+ $1.1274 -52%

1,000+ $1.0712 -54%

2,000+ $1.0236 -56%

5,000+ $0.9718 -59%

10,000+ $0.9395 -60% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	8200Vrms
Current Transfer Ratio (Min)	50% @ 10mA
Current Transfer Ratio (Max)	300% @ 10mA
Turn On / Turn Off Time (Typ)	5µs, 3µs
Rise / Fall Time (Typ)	2.4µs, 2.7µs
Input Type	DC
Output Type	Transistor

Voltage - Output (Max)	32V
Current - Output / Channel	50mA
Voltage - Forward (Vf) (Typ)	1.25V
Current - DC Forward (If) (Max)	75 mA
Vce Saturation (Max)	300mV
Operating Temperature	-55°C ~ 85°C
Mounting Type	Through Hole
Package / Case	4-DIP (0.200", 5.08mm)
Supplier Device Package	4-DIP
