Name: CNY17F-3X017
Brand: Vishay Semiconductor Opto Division
SKU: CNY17F-3X017
Price: 0.80 USD
Availability: InStock

REF: CNY17F-3X017 Vishay Semiconductor Opto Division

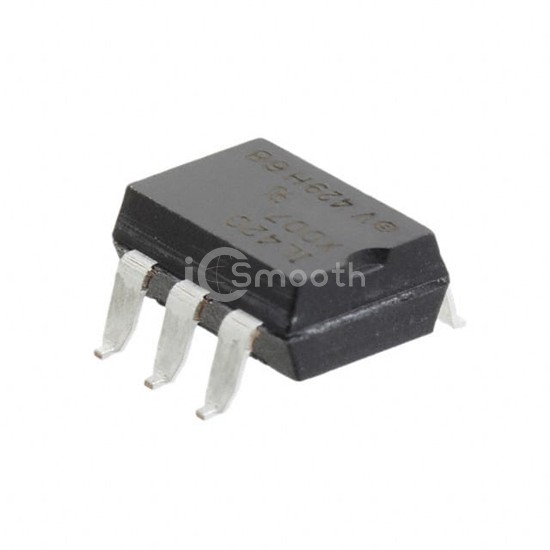

CNY17F-3X017

Vishay Semiconductor Opto Division

OPTOISOLTR 5KV TRANSISTOR 6-SMD

CNY17F-3X017 is a Optoisolators - Transistor, Photovoltaic Output manufactured by Vishay Semiconductor Opto Division. OPTOISOLTR 5KV TRANSISTOR 6-SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 110°C, voltage - forward (vf) (typ) 1.39V, package / case 6-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 4,866

Tiered Pricing USD

1+ $0.8000 —

50+ $0.4418 -45%

100+ $0.4048 -49%

500+ $0.3383 -58%

1,000+ $0.3165 -60%

2,000+ $0.2980 -63%

5,000+ $0.2778 -65%

10,000+ $0.2652 -67%

25,000+ $0.2515 -69% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	5000Vrms
Current Transfer Ratio (Min)	100% @ 10mA
Current Transfer Ratio (Max)	200% @ 10mA
Turn On / Turn Off Time (Typ)	3µs, 2.3µs
Rise / Fall Time (Typ)	2µs, 2µs
Input Type	DC
Output Type	Transistor

Voltage - Output (Max)	70V
Current - Output / Channel	50mA
Voltage - Forward (Vf) (Typ)	1.39V
Current - DC Forward (If) (Max)	60 mA
Vce Saturation (Max)	400mV
Operating Temperature	-55°C ~ 110°C
Mounting Type	Surface Mount
Package / Case	6-SMD, Gull Wing
Supplier Device Package	6-SMD
