CNY17F-3X009T

In Stock: 488

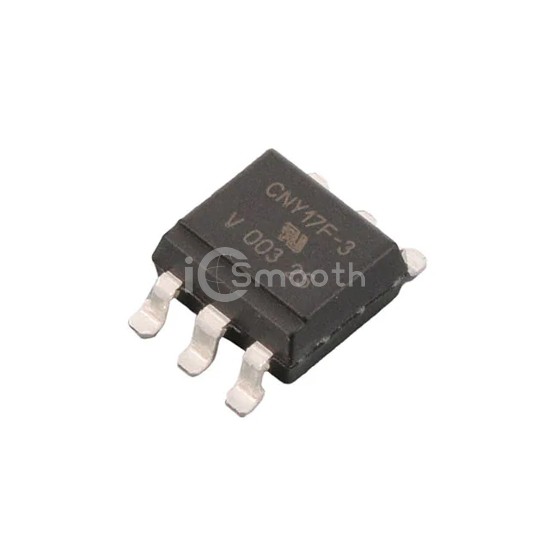

CNY17F-3X009T - Vishay Semiconductor Opto Division - Optoisolators - Transistor, Photovoltaic Output
REF: CNY17F-3X009T Vishay Semiconductor Opto Division
CNY17F-3X009T

Vishay Semiconductor Opto Division

OPTOISOLTR 5KV TRANSISTOR 6-SMD

CNY17F-3X009T is a Optoisolators - Transistor, Photovoltaic Output manufactured by Vishay Semiconductor Opto Division. OPTOISOLTR 5KV TRANSISTOR 6-SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 110°C, voltage - forward (vf) (typ) 1.39V, package / case 6-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 488

Tiered Pricing USD
1+ $0.8000 —
10+ $0.5540 -31%
100+ $0.4048 -49%
500+ $0.3383 -58% BEST

Specifications

18 parameters
Product StatusActive
Number of Channels1
Voltage - Isolation5000Vrms
Current Transfer Ratio (Min)100% @ 10mA
Current Transfer Ratio (Max)200% @ 10mA
Turn On / Turn Off Time (Typ)3µs, 2.3µs
Rise / Fall Time (Typ)2µs, 2µs
Input TypeDC
Output TypeTransistor
Voltage - Output (Max)70V
Current - Output / Channel50mA
Voltage - Forward (Vf) (Typ)1.39V
Current - DC Forward (If) (Max)60 mA
Vce Saturation (Max)400mV
Operating Temperature-55°C ~ 110°C
Mounting TypeSurface Mount
Package / Case6-SMD, Gull Wing
Supplier Device Package6-SMD
