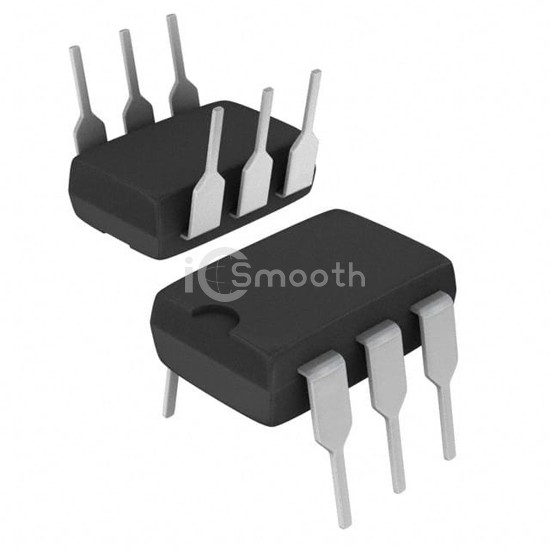

Name: CNY17-3.
Brand: Vishay Semiconductor Opto Division
SKU: CNY17-3.
Price: 0.63 USD
Availability: InStock

REF: CNY17-3. Vishay Semiconductor Opto Division

CNY17-3.

Vishay Semiconductor Opto Division

OPTOISO 5KV TRANS W/BASE 6DIP

CNY17-3. is a Optoisolators - Transistor, Photovoltaic Output manufactured by Vishay Semiconductor Opto Division. OPTOISO 5KV TRANS W/BASE 6DIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 110°C, voltage - forward (vf) (typ) 1.39V, package / case 6-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 1,985

Tiered Pricing USD

1+ $0.6300 —

50+ $0.3446 -45%

100+ $0.3147 -50%

500+ $0.2609 -59%

1,000+ $0.2433 -61%

2,000+ $0.2283 -64%

5,000+ $0.2118 -66%

10,000+ $0.2016 -68%

25,000+ $0.1904 -70% BEST

Specifications

18 parameters

Product Status	Not For New Designs
Number of Channels	1
Voltage - Isolation	5000Vrms
Current Transfer Ratio (Min)	100% @ 10mA
Current Transfer Ratio (Max)	200% @ 10mA
Turn On / Turn Off Time (Typ)	3µs, 2.3µs
Rise / Fall Time (Typ)	2µs, 2µs
Input Type	DC
Output Type	Transistor with Base

Voltage - Output (Max)	70V
Current - Output / Channel	50mA
Voltage - Forward (Vf) (Typ)	1.39V
Current - DC Forward (If) (Max)	60 mA
Vce Saturation (Max)	400mV
Operating Temperature	-55°C ~ 110°C
Mounting Type	Through Hole
Package / Case	6-DIP (0.300", 7.62mm)
Supplier Device Package	6-DIP
