Name: CNY17-2X019T
Brand: Vishay Semiconductor Opto Division
SKU: CNY17-2X019T
Price: 0.35 USD
Availability: InStock

REF: CNY17-2X019T Vishay Semiconductor Opto Division

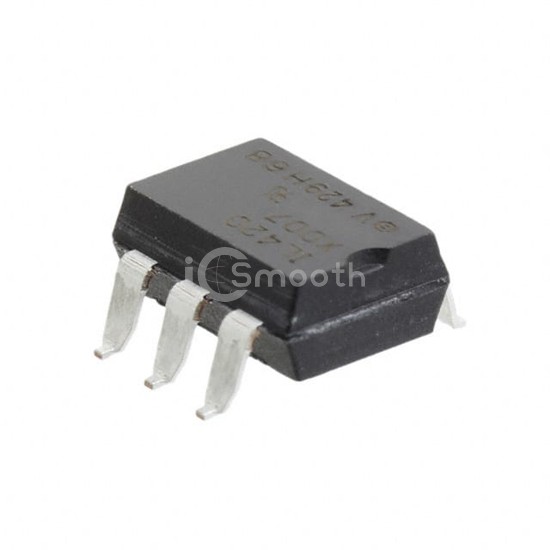

CNY17-2X019T

Vishay Semiconductor Opto Division

OPTOISO 5KV TRANS W/BASE 6SMD

CNY17-2X019T is a Optoisolators - Transistor, Photovoltaic Output manufactured by Vishay Semiconductor Opto Division. OPTOISO 5KV TRANS W/BASE 6SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 110°C, voltage - forward (vf) (typ) 1.39V, package / case 6-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 2,953

Tiered Pricing USD

1,000+ $0.3485 —

2,000+ $0.3285 -6%

3,000+ $0.3183 -9%

5,000+ $0.3067 -12%

7,000+ $0.2998 -14%

10,000+ $0.2931 -16%

25,000+ $0.2783 -20% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	5000Vrms
Current Transfer Ratio (Min)	63% @ 10mA
Current Transfer Ratio (Max)	125% @ 10mA
Turn On / Turn Off Time (Typ)	3µs, 2.3µs
Rise / Fall Time (Typ)	2µs, 2µs
Input Type	DC
Output Type	Transistor with Base

Voltage - Output (Max)	70V
Current - Output / Channel	50mA
Voltage - Forward (Vf) (Typ)	1.39V
Current - DC Forward (If) (Max)	60 mA
Vce Saturation (Max)	400mV
Operating Temperature	-55°C ~ 110°C
Mounting Type	Surface Mount
Package / Case	6-SMD, Gull Wing
Supplier Device Package	6-SMD
