Name: BRT23-M
Brand: Vishay Semiconductor Opto Division
SKU: BRT23-M
Availability: InStock

REF: BRT23-M Vishay Semiconductor Opto Division

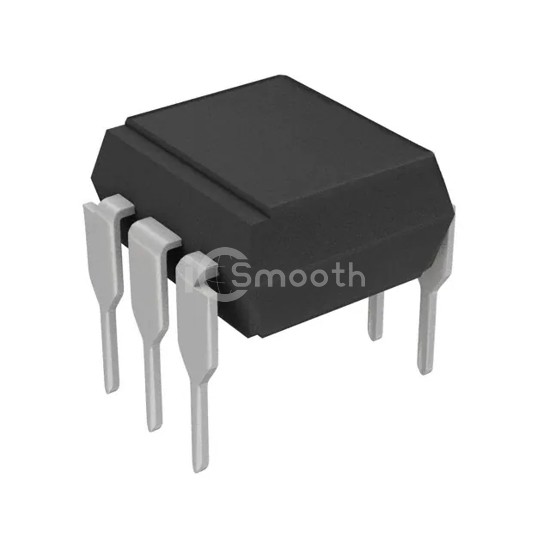

BRT23-M

PHOTOCOUPLER TRIAC 800V 6DIP

BRT23-M is a Optoisolators - Triac, SCR Output manufactured by Vishay Semiconductor Opto Division. PHOTOCOUPLER TRIAC 800V 6DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 100°C, voltage - forward (vf) (typ) 1.16V, package / case 6-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 4,704

Specifications

18 parameters

Product Status	Obsolete
Output Type	Triac
Zero Crossing Circuit	Yes
Number of Channels	1
Voltage - Isolation	5300Vrms
Voltage - Off State	800 V
Static dV/dt (Min)	10kV/µs
Current - LED Trigger (Ift) (Max)	3mA
Current - On State (It (RMS)) (Max)	300 mA

Current - Hold (Ih)	500µA
Turn On Time	35µs
Voltage - Forward (Vf) (Typ)	1.16V
Current - DC Forward (If) (Max)	60 mA
Operating Temperature	-40°C ~ 100°C
Mounting Type	Through Hole
Package / Case	6-DIP (0.300", 7.62mm)
Supplier Device Package	6-DIP
Approval Agency	CQC, UL
