BRT12-H

In Stock: 6,150

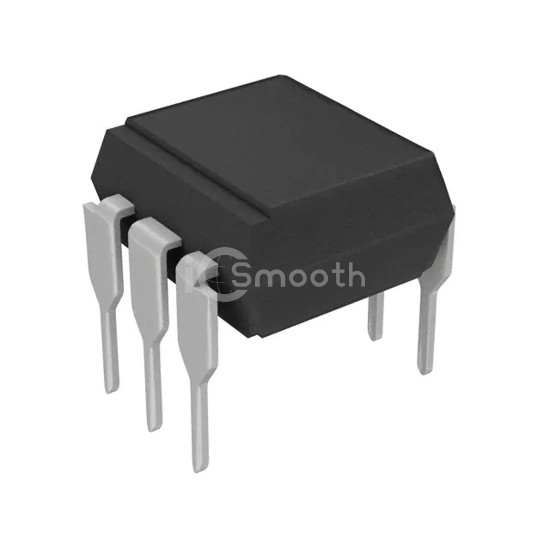

BRT12-H - Vishay Semiconductor Opto Division - Optoisolators - Triac, SCR Output
REF: BRT12-H Vishay Semiconductor Opto Division
BRT12-H

Vishay Semiconductor Opto Division

PHOTOCOUPLER TRIAC 600V 6DIP

BRT12-H is a Optoisolators - Triac, SCR Output manufactured by Vishay Semiconductor Opto Division. PHOTOCOUPLER TRIAC 600V 6DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 100°C, voltage - forward (vf) (typ) 1.1V, package / case 6-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 6,150

Specifications

18 parameters
Product StatusObsolete
Output TypeTriac
Zero Crossing CircuitNo
Number of Channels1
Voltage - Isolation5300Vrms
Voltage - Off State600 V
Static dV/dt (Min)10kV/µs
Current - LED Trigger (Ift) (Max)2mA
Current - On State (It (RMS)) (Max)300 mA
Current - Hold (Ih)500µA
Turn On Time-
Voltage - Forward (Vf) (Typ)1.1V
Current - DC Forward (If) (Max)20 mA
Operating Temperature-40°C ~ 100°C
Mounting TypeThrough Hole
Package / Case6-DIP (0.300", 7.62mm)
Supplier Device Package6-DIP
Approval AgencyCQC, UL
