Name: 6N135-X007T
Brand: Vishay Semiconductor Opto Division
SKU: 6N135-X007T
Price: 1.57 USD
Availability: InStock

REF: 6N135-X007T Vishay Semiconductor Opto Division

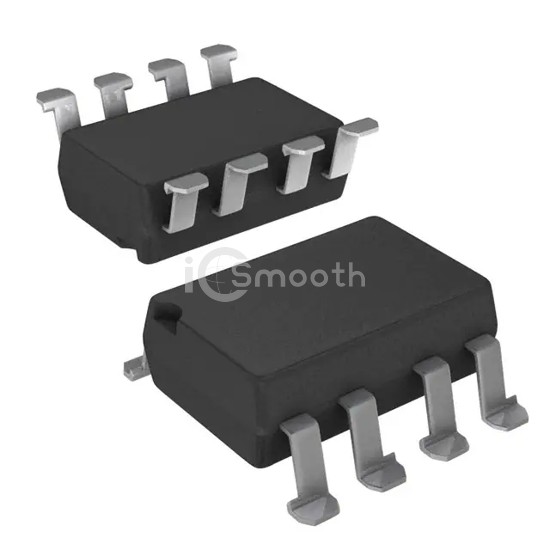

6N135-X007T

Vishay Semiconductor Opto Division

OPTOISO 5.3KV TRANS W/BASE 8DIP

6N135-X007T is a Optoisolators - Transistor, Photovoltaic Output manufactured by Vishay Semiconductor Opto Division. OPTOISO 5.3KV TRANS W/BASE 8DIP. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 100°C, voltage - forward (vf) (typ) 1.33V, package / case 8-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 378

Tiered Pricing USD

1+ $1.5700 —

10+ $1.1130 -29% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	5300Vrms
Current Transfer Ratio (Min)	7% @ 16mA
Current Transfer Ratio (Max)	-
Turn On / Turn Off Time (Typ)	300ns, 300ns
Rise / Fall Time (Typ)	-
Input Type	DC
Output Type	Transistor with Base

Voltage - Output (Max)	15V
Current - Output / Channel	8mA
Voltage - Forward (Vf) (Typ)	1.33V
Current - DC Forward (If) (Max)	25 mA
Vce Saturation (Max)	-
Operating Temperature	-55°C ~ 100°C
Mounting Type	Surface Mount
Package / Case	8-SMD, Gull Wing
Supplier Device Package	8-SMD
