Name: 4N38-X007T
Brand: Vishay Semiconductor Opto Division
SKU: 4N38-X007T
Price: 0.30 USD
Availability: InStock

REF: 4N38-X007T Vishay Semiconductor Opto Division

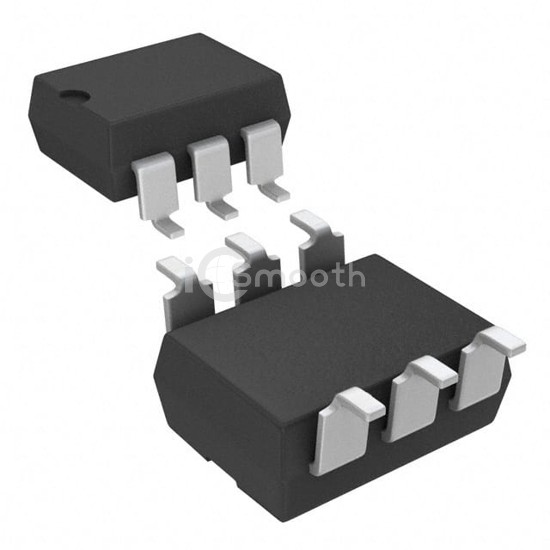

4N38-X007T

Vishay Semiconductor Opto Division

OPTOISO 5KV TRANS W/BASE 6SMD

4N38-X007T is a Optoisolators - Transistor, Photovoltaic Output manufactured by Vishay Semiconductor Opto Division. OPTOISO 5KV TRANS W/BASE 6SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 100°C, voltage - forward (vf) (typ) 1.2V, package / case 6-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 3,824

Tiered Pricing USD

1,000+ $0.3020 —

2,000+ $0.2842 -6%

3,000+ $0.2751 -9%

5,000+ $0.2647 -12%

7,000+ $0.2586 -14%

10,000+ $0.2526 -16%

25,000+ $0.2393 -21% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	5000Vrms
Current Transfer Ratio (Min)	20% @ 20mA
Current Transfer Ratio (Max)	-
Turn On / Turn Off Time (Typ)	10µs, 10µs
Rise / Fall Time (Typ)	-
Input Type	DC
Output Type	Transistor with Base

Voltage - Output (Max)	80V
Current - Output / Channel	50mA
Voltage - Forward (Vf) (Typ)	1.2V
Current - DC Forward (If) (Max)	60 mA
Vce Saturation (Max)	-
Operating Temperature	-55°C ~ 100°C
Mounting Type	Surface Mount
Package / Case	6-SMD, Gull Wing
Supplier Device Package	6-SMD
