Name: 4N38
Brand: Vishay Semiconductor Opto Division
SKU: 4N38
Price: 0.76 USD
Availability: InStock

REF: 4N38 Vishay Semiconductor Opto Division

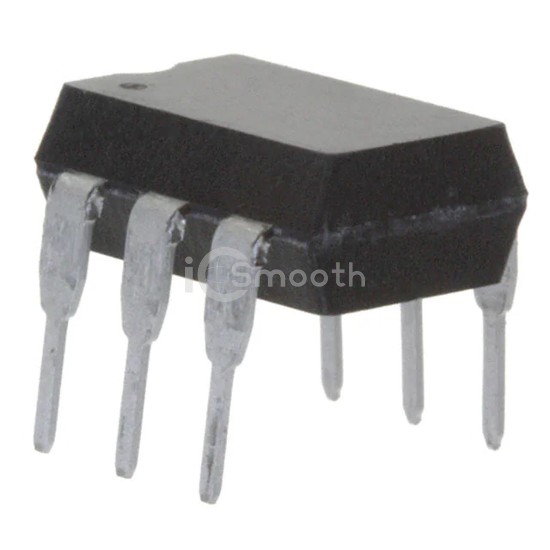

4N38

Vishay Semiconductor Opto Division

OPTOISO 5KV TRANS W/BASE 6DIP

4N38 is a Optoisolators - Transistor, Photovoltaic Output manufactured by Vishay Semiconductor Opto Division. OPTOISO 5KV TRANS W/BASE 6DIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 100°C, voltage - forward (vf) (typ) 1.2V, package / case 6-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 485

Tiered Pricing USD

1+ $0.7600 —

50+ $0.4228 -44%

100+ $0.3871 -49%

500+ $0.3230 -57%

1,000+ $0.3020 -60%

2,000+ $0.2842 -63%

5,000+ $0.2647 -65%

10,000+ $0.2526 -67%

25,000+ $0.2393 -69% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	5000Vrms
Current Transfer Ratio (Min)	20% @ 20mA
Current Transfer Ratio (Max)	-
Turn On / Turn Off Time (Typ)	10µs, 10µs
Rise / Fall Time (Typ)	-
Input Type	DC
Output Type	Transistor with Base

Voltage - Output (Max)	80V
Current - Output / Channel	50mA
Voltage - Forward (Vf) (Typ)	1.2V
Current - DC Forward (If) (Max)	60 mA
Vce Saturation (Max)	-
Operating Temperature	-55°C ~ 100°C
Mounting Type	Through Hole
Package / Case	6-DIP (0.300", 7.62mm)
Supplier Device Package	6-DIP
