Name: 4N25V
Brand: Vishay Semiconductor Opto Division
SKU: 4N25V
Price: 0.68 USD
Availability: InStock

REF: 4N25V Vishay Semiconductor Opto Division

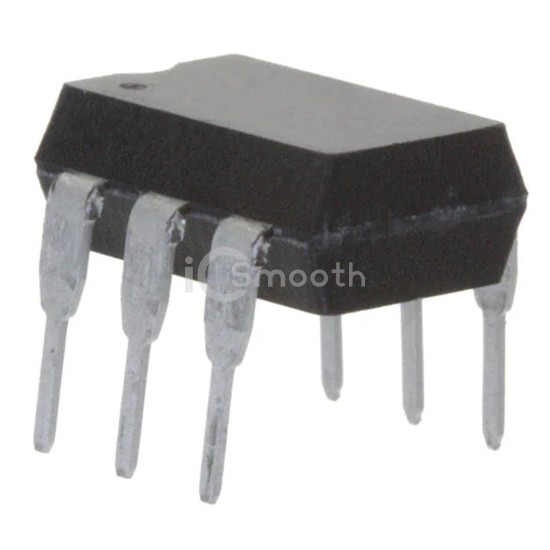

4N25V

Vishay Semiconductor Opto Division

OPTOISO 5KV TRANS W/BASE 6DIP

4N25V is a Optoisolators - Transistor, Photovoltaic Output manufactured by Vishay Semiconductor Opto Division. OPTOISO 5KV TRANS W/BASE 6DIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 100°C, voltage - forward (vf) (typ) 1.2V, package / case 6-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 887

Tiered Pricing USD

1+ $0.6800 —

50+ $0.3754 -45%

100+ $0.3432 -50%

500+ $0.2853 -58%

1,000+ $0.2663 -61%

2,000+ $0.2502 -63%

5,000+ $0.2325 -66%

10,000+ $0.2215 -67%

25,000+ $0.2095 -69% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	5000Vrms
Current Transfer Ratio (Min)	20% @ 10mA
Current Transfer Ratio (Max)	-
Turn On / Turn Off Time (Typ)	11µs, 7µs
Rise / Fall Time (Typ)	7µs, 6.7µs
Input Type	DC
Output Type	Transistor with Base

Voltage - Output (Max)	32V
Current - Output / Channel	50mA
Voltage - Forward (Vf) (Typ)	1.2V
Current - DC Forward (If) (Max)	60 mA
Vce Saturation (Max)	300mV
Operating Temperature	-55°C ~ 100°C
Mounting Type	Through Hole
Package / Case	6-DIP (0.300", 7.62mm)
Supplier Device Package	6-DIP
