Name: VSS8D2M15HM3/H
Brand: Vishay General Semiconductor - Diodes Division
SKU: VSS8D2M15HM3/H
Price: 0.48 USD
Availability: InStock

REF: VSS8D2M15HM3/H Vishay General Semiconductor - Diodes Division

VSS8D2M15HM3/H

Vishay General Semiconductor - Diodes Division

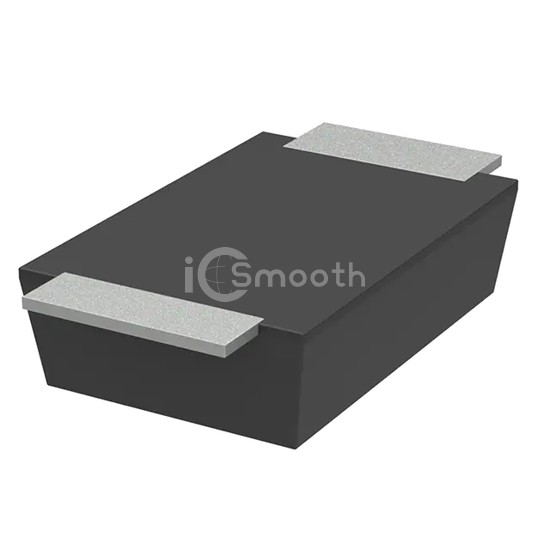

SCHOTTKY BARRIER RECT DO-221AD

VSS8D2M15HM3/H is a Diodes - Rectifiers - Single manufactured by Vishay General Semiconductor - Diodes Division. SCHOTTKY BARRIER RECT DO-221AD. Key specifications: mounting type Surface Mount, package / case DO-221AC, SMA Flat Leads.

Datasheet Request a Quote

In Stock: 8,769

Specifications

13 parameters

Product Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	150 V
Current - Average Rectified (Io)	1.8A
Voltage - Forward (Vf) (Max) @ If	700 mV @ 1 A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	-

Current - Reverse Leakage @ Vr	150 µA @ 150 V
Capacitance @ Vr, F	150pF @ 4V, 1MHz
Mounting Type	Surface Mount
Package / Case	DO-221AC, SMA Flat Leads
Supplier Device Package	SlimSMAW (DO-221AD)
Operating Temperature - Junction	-40°C ~ 175°C
