VSB2200S-M3/54

In Stock: 7,743

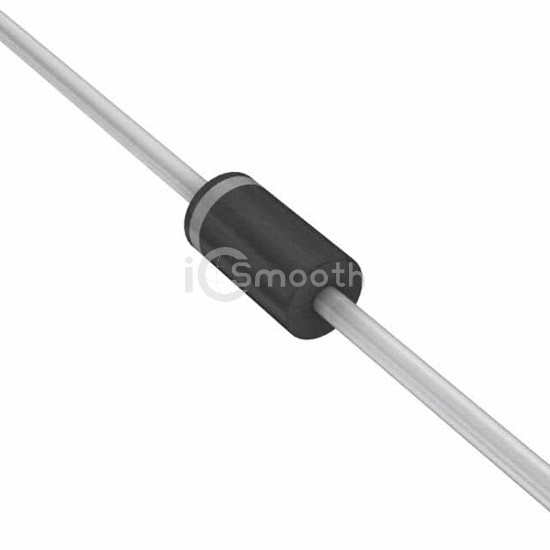

VSB2200S-M3/54 - Vishay General Semiconductor - Diodes Division - Diodes - Rectifiers - Single
REF: VSB2200S-M3/54 Vishay General Semiconductor - Diodes Division
VSB2200S-M3/54

Vishay General Semiconductor - Diodes Division

DIODE SCHOTTKY 200V 2A DO204AL

VSB2200S-M3/54 is a Diodes - Rectifiers - Single manufactured by Vishay General Semiconductor - Diodes Division. DIODE SCHOTTKY 200V 2A DO204AL. Key specifications: mounting type Through Hole, package / case DO-204AL, DO-41, Axial.

Datasheet Request a Quote

In Stock: 7,743

Specifications

13 parameters
Product StatusObsolete
Diode TypeSchottky
Voltage - DC Reverse (Vr) (Max)200 V
Current - Average Rectified (Io)2A
Voltage - Forward (Vf) (Max) @ If1.23 V @ 2 A
SpeedFast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)-
Current - Reverse Leakage @ Vr40 µA @ 200 V
Capacitance @ Vr, F110pF @ 4V, 1MHz
Mounting TypeThrough Hole
Package / CaseDO-204AL, DO-41, Axial
Supplier Device PackageDO-204AL (DO-41)
Operating Temperature - Junction-40°C ~ 150°C
