VSB1545S-E3/73

In Stock: 9,444

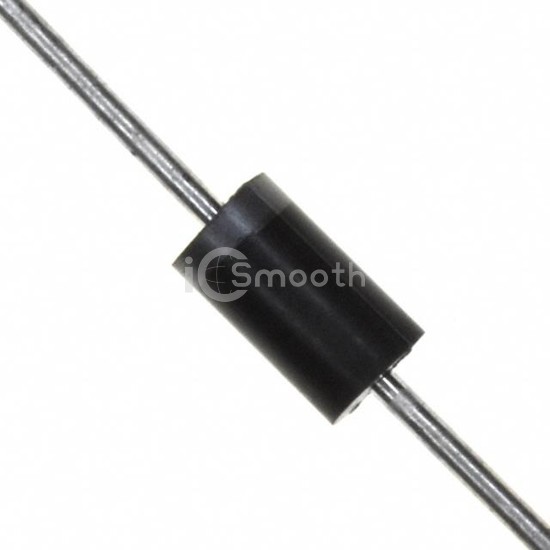

VSB1545S-E3/73 - Vishay General Semiconductor - Diodes Division - Diodes - Rectifiers - Single
REF: VSB1545S-E3/73 Vishay General Semiconductor - Diodes Division
VSB1545S-E3/73

Vishay General Semiconductor - Diodes Division

DIODE SCHOTTKY 45V 7A DO201AD

VSB1545S-E3/73 is a Diodes - Rectifiers - Single manufactured by Vishay General Semiconductor - Diodes Division. DIODE SCHOTTKY 45V 7A DO201AD. Key specifications: mounting type Through Hole, package / case DO-201AD, Axial.

Datasheet Request a Quote

In Stock: 9,444

Specifications

13 parameters
Product StatusObsolete
Diode TypeSchottky
Voltage - DC Reverse (Vr) (Max)45 V
Current - Average Rectified (Io)7A
Voltage - Forward (Vf) (Max) @ If590 mV @ 15 A
SpeedFast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)-
Current - Reverse Leakage @ Vr1 mA @ 45 V
Capacitance @ Vr, F1995pF @ 4V, 1MHz
Mounting TypeThrough Hole
Package / CaseDO-201AD, Axial
Supplier Device PackageDO-201AD
Operating Temperature - Junction-40°C ~ 150°C
