VS-VSKCS209/150

In Stock: 9,163

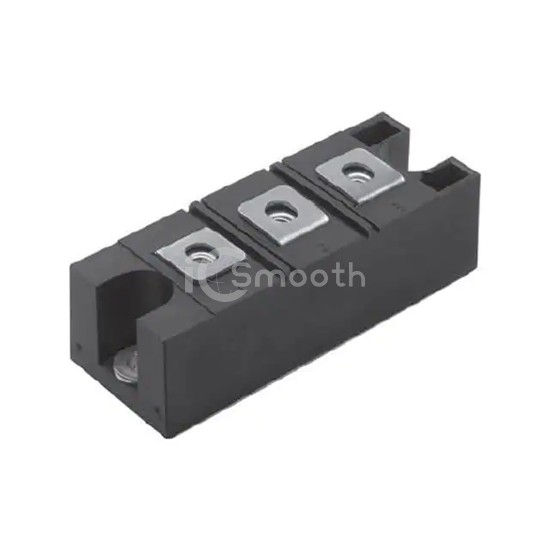

VS-VSKCS209/150 - Vishay General Semiconductor - Diodes Division - Diodes - Rectifiers - Arrays
REF: VS-VSKCS209/150 Vishay General Semiconductor - Diodes Division
VS-VSKCS209/150

Vishay General Semiconductor - Diodes Division

DIODE SCHOTTKY 150V 100A ADDAPAK

VS-VSKCS209/150 is a Diodes - Rectifiers - Arrays manufactured by Vishay General Semiconductor - Diodes Division. DIODE SCHOTTKY 150V 100A ADDAPAK. Key specifications: mounting type Chassis Mount, package / case ADD-A-PAK (3).

Datasheet Request a Quote

In Stock: 9,163

Specifications

13 parameters
Product StatusActive
Diode Configuration1 Pair Series Connection
Diode TypeSchottky
Voltage - DC Reverse (Vr) (Max)150 V
Current - Average Rectified (Io) (per Diode)100A
Voltage - Forward (Vf) (Max) @ If1.01 V @ 100 A
SpeedFast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)-
Current - Reverse Leakage @ Vr6 mA @ 150 V
Operating Temperature - Junction-55°C ~ 150°C
Mounting TypeChassis Mount
Package / CaseADD-A-PAK (3)
Supplier Device PackageADD-A-PAK®
