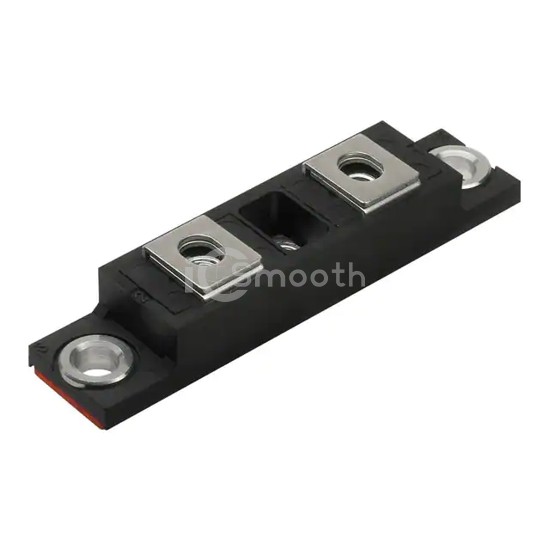

VS-VS5HD300CW60

In Stock: 50
VS-VS5HD300CW60 - Vishay General Semiconductor - Diodes Division - Diodes - Rectifiers - Arrays
REF: VS-VS5HD300CW60 Vishay General Semiconductor - Diodes Division
VS-VS5HD300CW60

Vishay General Semiconductor - Diodes Division

TO-244 - GEN5 FRED IN COMMON CAT

VS-VS5HD300CW60 is a Diodes - Rectifiers - Arrays manufactured by Vishay General Semiconductor - Diodes Division. TO-244 - GEN5 FRED IN COMMON CAT. Key specifications: mounting type Chassis Mount, package / case TO-244AB.

Datasheet Request a Quote

In Stock: 50

Specifications

13 parameters
Product StatusActive
Diode Configuration1 Pair Common Cathode
Diode TypeStandard
Voltage - DC Reverse (Vr) (Max)600 V
Current - Average Rectified (Io) (per Diode)259A (DC)
Voltage - Forward (Vf) (Max) @ If1.7 V @ 150 A
SpeedFast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)68 ns
Current - Reverse Leakage @ Vr700 µA @ 600 V
Operating Temperature - Junction-40°C ~ 175°C
Mounting TypeChassis Mount
Package / CaseTO-244AB
Supplier Device PackageTO-244
