VS-UFB80FA20

In Stock: 7,965

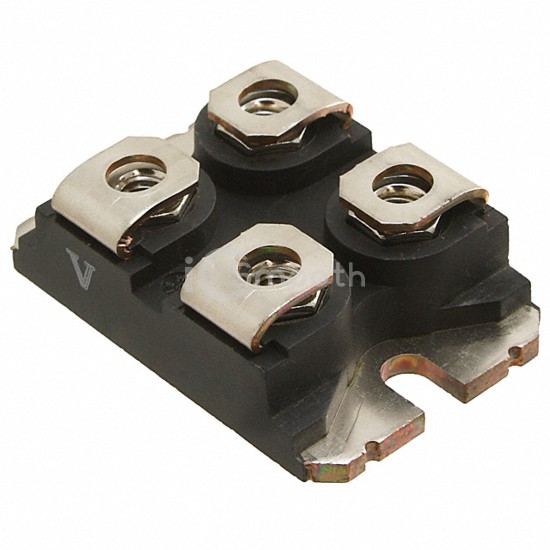

VS-UFB80FA20 - Vishay General Semiconductor - Diodes Division - Diodes - Rectifiers - Arrays
REF: VS-UFB80FA20 Vishay General Semiconductor - Diodes Division
VS-UFB80FA20

Vishay General Semiconductor - Diodes Division

DIODE MODULE 200V 40A SOT227

VS-UFB80FA20 is a Diodes - Rectifiers - Arrays manufactured by Vishay General Semiconductor - Diodes Division. DIODE MODULE 200V 40A SOT227. Key specifications: mounting type Chassis Mount, package / case SOT-227-4, miniBLOC.

Datasheet Request a Quote

In Stock: 7,965

Specifications

13 parameters
Product StatusActive
Diode Configuration2 Independent
Diode TypeStandard
Voltage - DC Reverse (Vr) (Max)200 V
Current - Average Rectified (Io) (per Diode)40A (DC)
Voltage - Forward (Vf) (Max) @ If1.08 V @ 30 A
SpeedFast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)34 ns
Current - Reverse Leakage @ Vr50 µA @ 200 V
Operating Temperature - Junction-
Mounting TypeChassis Mount
Package / CaseSOT-227-4, miniBLOC
Supplier Device PackageSOT-227
