VS-U5FX240FA120

In Stock: 8,718

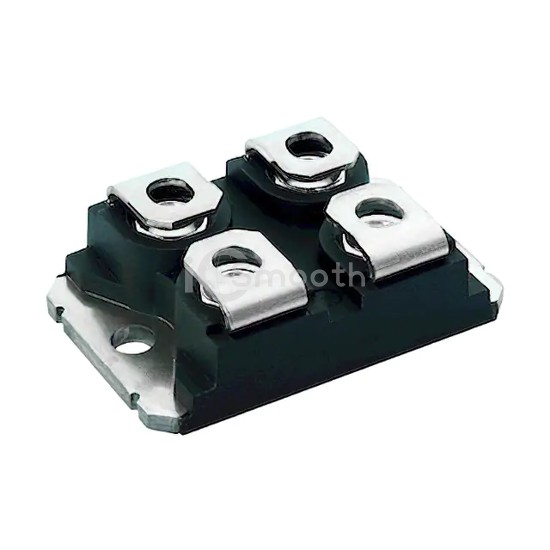

VS-U5FX240FA120 - Vishay General Semiconductor - Diodes Division - Diodes - Rectifiers - Arrays
REF: VS-U5FX240FA120 Vishay General Semiconductor - Diodes Division
VS-U5FX240FA120

Vishay General Semiconductor - Diodes Division

SOT-227 - GEN5 FRED IN PARALLEL

VS-U5FX240FA120 is a Diodes - Rectifiers - Arrays manufactured by Vishay General Semiconductor - Diodes Division. SOT-227 - GEN5 FRED IN PARALLEL. Key specifications: mounting type Chassis Mount, package / case SOT-227-4, miniBLOC.

Datasheet Request a Quote

In Stock: 8,718

Specifications

13 parameters
Product StatusActive
Diode Configuration2 Independent
Diode TypeStandard
Voltage - DC Reverse (Vr) (Max)1200 V
Current - Average Rectified (Io) (per Diode)120A (DC)
Voltage - Forward (Vf) (Max) @ If3.33 V @ 120 A
SpeedFast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)60 ns
Current - Reverse Leakage @ Vr160 µA @ 1200 kV
Operating Temperature - Junction-55°C ~ 175°C
Mounting TypeChassis Mount
Package / CaseSOT-227-4, miniBLOC
Supplier Device PackageSOT-227
