VS-T70HFL80S05

In Stock: 7,609

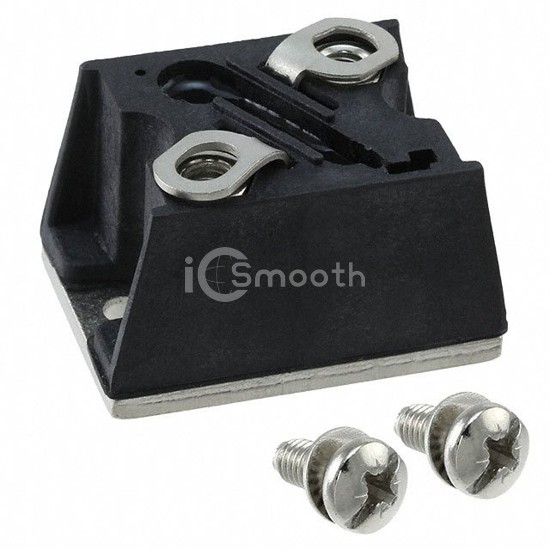

VS-T70HFL80S05 - Vishay General Semiconductor - Diodes Division - Diodes - Rectifiers - Single
REF: VS-T70HFL80S05 Vishay General Semiconductor - Diodes Division
VS-T70HFL80S05

Vishay General Semiconductor - Diodes Division

DIODE GEN PURP 800V 70A D-55

VS-T70HFL80S05 is a Diodes - Rectifiers - Single manufactured by Vishay General Semiconductor - Diodes Division. DIODE GEN PURP 800V 70A D-55. Key specifications: mounting type Chassis Mount, package / case D-55 T-Module.

Datasheet Request a Quote

In Stock: 7,609

Specifications

13 parameters
Product StatusActive
Diode TypeStandard
Voltage - DC Reverse (Vr) (Max)800 V
Current - Average Rectified (Io)70A
Voltage - Forward (Vf) (Max) @ If-
SpeedFast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)500 ns
Current - Reverse Leakage @ Vr100 µA @ 800 V
Capacitance @ Vr, F-
Mounting TypeChassis Mount
Package / CaseD-55 T-Module
Supplier Device PackageD-55
Operating Temperature - Junction-
