VS-STPS20L15D-M3

In Stock: 1,766

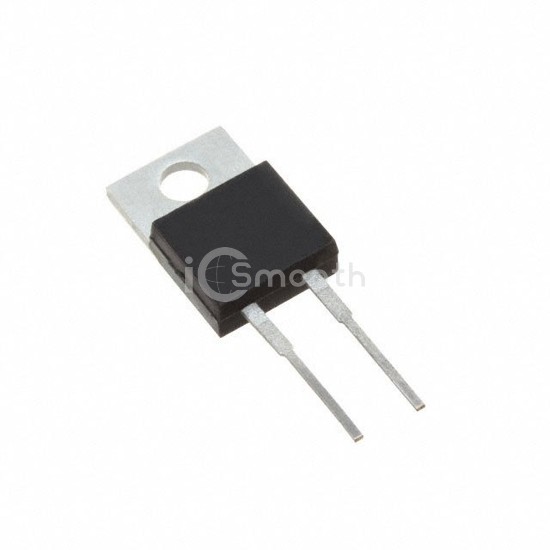

VS-STPS20L15D-M3 - Vishay General Semiconductor - Diodes Division - Diodes - Rectifiers - Single
REF: VS-STPS20L15D-M3 Vishay General Semiconductor - Diodes Division
VS-STPS20L15D-M3

Vishay General Semiconductor - Diodes Division

DIODE SCHOTTKY 15V 20A TO220AC

VS-STPS20L15D-M3 is a Diodes - Rectifiers - Single manufactured by Vishay General Semiconductor - Diodes Division. DIODE SCHOTTKY 15V 20A TO220AC. Key specifications: mounting type Through Hole, package / case TO-220-2.

Datasheet Request a Quote

In Stock: 1,766

Specifications

13 parameters
Product StatusActive
Diode TypeSchottky
Voltage - DC Reverse (Vr) (Max)15 V
Current - Average Rectified (Io)20A
Voltage - Forward (Vf) (Max) @ If520 mV @ 40 A
SpeedFast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)-
Current - Reverse Leakage @ Vr10 mA @ 15 V
Capacitance @ Vr, F2000pF @ 5V, 1MHz
Mounting TypeThrough Hole
Package / CaseTO-220-2
Supplier Device PackageTO-220AC
Operating Temperature - Junction-55°C ~ 125°C
