Name: VS-ST650C22L1
Brand: Vishay General Semiconductor - Diodes Division
SKU: VS-ST650C22L1
Price: 182.13 USD
Availability: InStock

REF: VS-ST650C22L1 Vishay General Semiconductor - Diodes Division

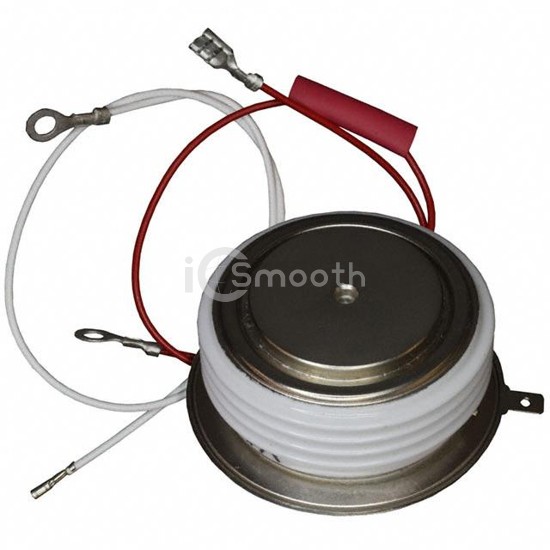

VS-ST650C22L1

Vishay General Semiconductor - Diodes Division

SCR 2.2KV 1557A B-PUK

VS-ST650C22L1 is a Thyristors - SCRs manufactured by Vishay General Semiconductor - Diodes Division. SCR 2.2KV 1557A B-PUK. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 125°C, package / case TO-200AC, B-PUK.

Datasheet Request a Quote

In Stock: 9,548

Specifications

15 parameters

Product Status	Active
Voltage - Off State	2.2 kV
Voltage - Gate Trigger (Vgt) (Max)	3 V
Current - Gate Trigger (Igt) (Max)	200 mA
Voltage - On State (Vtm) (Max)	2.07 V
Current - On State (It (AV)) (Max)	790 A
Current - On State (It (RMS)) (Max)	1557 A
Current - Hold (Ih) (Max)	600 mA

Current - Off State (Max)	80 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	8600A, 9150A
SCR Type	Standard Recovery
Operating Temperature	-40°C ~ 125°C
Mounting Type	Chassis Mount
Package / Case	TO-200AC, B-PUK
Supplier Device Package	TO-200AC, B-PUK
