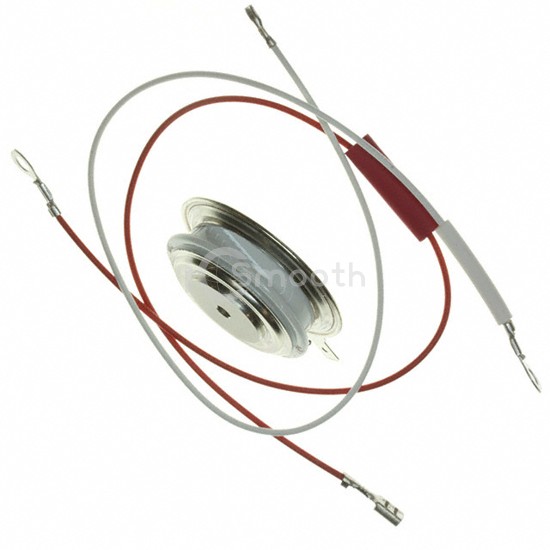

Name: VS-ST223C04CFL0
Brand: Vishay General Semiconductor - Diodes Division
SKU: VS-ST223C04CFL0
Price: 72.55 USD
Availability: InStock

REF: VS-ST223C04CFL0 Vishay General Semiconductor - Diodes Division

VS-ST223C04CFL0

Vishay General Semiconductor - Diodes Division

SCR 400V 745A A-PUK

VS-ST223C04CFL0 is a Thyristors - SCRs manufactured by Vishay General Semiconductor - Diodes Division. SCR 400V 745A A-PUK. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 125°C, package / case TO-200AB, A-PUK.

Datasheet Request a Quote

In Stock: 8,520

Specifications

15 parameters

Product Status	Active
Voltage - Off State	400 V
Voltage - Gate Trigger (Vgt) (Max)	3 V
Current - Gate Trigger (Igt) (Max)	200 mA
Voltage - On State (Vtm) (Max)	1.58 V
Current - On State (It (AV)) (Max)	390 A
Current - On State (It (RMS)) (Max)	745 A
Current - Hold (Ih) (Max)	600 mA

Current - Off State (Max)	40 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	5850A, 6130A
SCR Type	Standard Recovery
Operating Temperature	-40°C ~ 125°C
Mounting Type	Chassis Mount
Package / Case	TO-200AB, A-PUK
Supplier Device Package	TO-200AB, A-PUK
