VS-SD803C16S15C

In Stock: 8,645

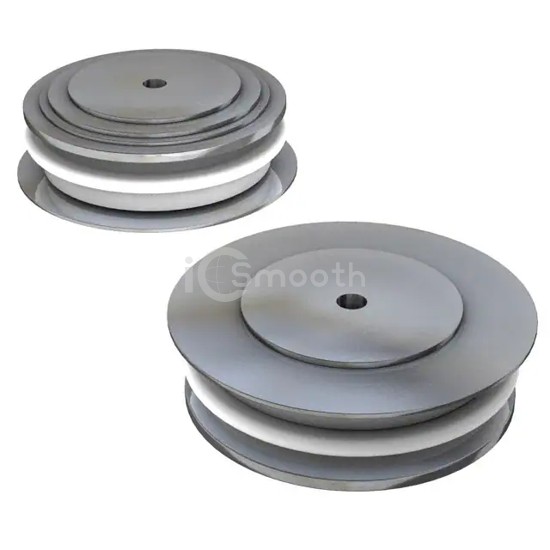

VS-SD803C16S15C - Vishay General Semiconductor - Diodes Division - Diodes - Rectifiers - Single
REF: VS-SD803C16S15C Vishay General Semiconductor - Diodes Division
VS-SD803C16S15C

Vishay General Semiconductor - Diodes Division

DIODE GEN PURP 1.6KV 845A B-43

VS-SD803C16S15C is a Diodes - Rectifiers - Single manufactured by Vishay General Semiconductor - Diodes Division. DIODE GEN PURP 1.6KV 845A B-43. Key specifications: mounting type Stud Mount, package / case DO-200AA, A-PUK.

Datasheet Request a Quote

In Stock: 8,645

Specifications

13 parameters
Product StatusActive
Diode TypeStandard
Voltage - DC Reverse (Vr) (Max)1600 V
Current - Average Rectified (Io)845A
Voltage - Forward (Vf) (Max) @ If1.89 V @ 2655 A
SpeedStandard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr)1.5 µs
Current - Reverse Leakage @ Vr45 mA @ 1600 V
Capacitance @ Vr, F-
Mounting TypeStud Mount
Package / CaseDO-200AA, A-PUK
Supplier Device PackageB-43, Hockey PUK
Operating Temperature - Junction-
