VS-SD603C08S10C

In Stock: 1,526

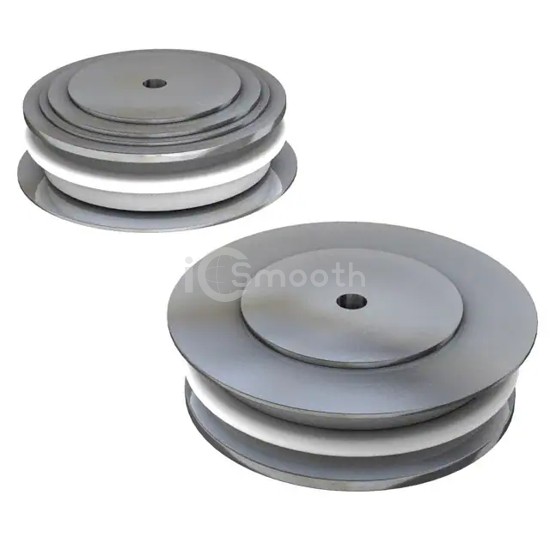

VS-SD603C08S10C - Vishay General Semiconductor - Diodes Division - Diodes - Rectifiers - Single
REF: VS-SD603C08S10C Vishay General Semiconductor - Diodes Division
VS-SD603C08S10C

Vishay General Semiconductor - Diodes Division

DIODE GEN PURP 800V 600A B-43

VS-SD603C08S10C is a Diodes - Rectifiers - Single manufactured by Vishay General Semiconductor - Diodes Division. DIODE GEN PURP 800V 600A B-43. Key specifications: mounting type Stud Mount, package / case DO-200AA, A-PUK.

Datasheet Request a Quote

In Stock: 1,526

Specifications

13 parameters
Product StatusActive
Diode TypeStandard
Voltage - DC Reverse (Vr) (Max)800 V
Current - Average Rectified (Io)600A
Voltage - Forward (Vf) (Max) @ If2.97 V @ 1885 A
SpeedStandard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr)1 µs
Current - Reverse Leakage @ Vr45 mA @ 800 V
Capacitance @ Vr, F-
Mounting TypeStud Mount
Package / CaseDO-200AA, A-PUK
Supplier Device PackageB-43, Hockey PUK
Operating Temperature - Junction-
