VS-SD553C30S50L

In Stock: 7,838

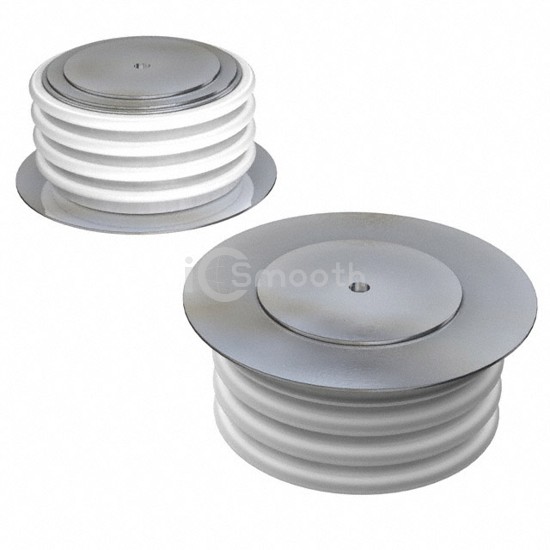

VS-SD553C30S50L - Vishay General Semiconductor - Diodes Division - Diodes - Rectifiers - Single
REF: VS-SD553C30S50L Vishay General Semiconductor - Diodes Division
VS-SD553C30S50L

Vishay General Semiconductor - Diodes Division

DIODE GEN PURP 3KV 560A DO200AB

VS-SD553C30S50L is a Diodes - Rectifiers - Single manufactured by Vishay General Semiconductor - Diodes Division. DIODE GEN PURP 3KV 560A DO200AB. Key specifications: mounting type Clamp On, package / case DO-200AB, B-PUK.

Datasheet Request a Quote

In Stock: 7,838

Specifications

13 parameters
Product StatusActive
Diode TypeStandard
Voltage - DC Reverse (Vr) (Max)3000 V
Current - Average Rectified (Io)560A
Voltage - Forward (Vf) (Max) @ If3.24 V @ 1500 A
SpeedStandard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr)5 µs
Current - Reverse Leakage @ Vr75 mA @ 3000 V
Capacitance @ Vr, F-
Mounting TypeClamp On
Package / CaseDO-200AB, B-PUK
Supplier Device PackageDO-200AB, B-PUK
Operating Temperature - Junction-
