VS-SD200N24PC

In Stock: 4,421

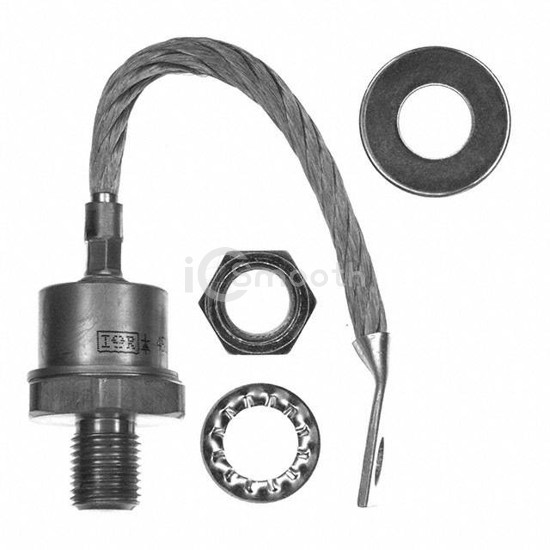

VS-SD200N24PC - Vishay General Semiconductor - Diodes Division - Diodes - Rectifiers - Single
REF: VS-SD200N24PC Vishay General Semiconductor - Diodes Division
VS-SD200N24PC

Vishay General Semiconductor - Diodes Division

DIODE GEN PURP 2.4KV 200A DO205

VS-SD200N24PC is a Diodes - Rectifiers - Single manufactured by Vishay General Semiconductor - Diodes Division. DIODE GEN PURP 2.4KV 200A DO205. Key specifications: mounting type Stud Mount, package / case DO-205AC, DO-30, Stud.

Datasheet Request a Quote

In Stock: 4,421

Specifications

13 parameters
Product StatusActive
Diode TypeStandard
Voltage - DC Reverse (Vr) (Max)2400 V
Current - Average Rectified (Io)200A
Voltage - Forward (Vf) (Max) @ If1.4 V @ 630 A
SpeedStandard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr)-
Current - Reverse Leakage @ Vr15 mA @ 2400 V
Capacitance @ Vr, F-
Mounting TypeStud Mount
Package / CaseDO-205AC, DO-30, Stud
Supplier Device PackageDO-205AC (DO-30)
Operating Temperature - Junction150°C (Max)
