VS-SD1500C12L

In Stock: 1,920

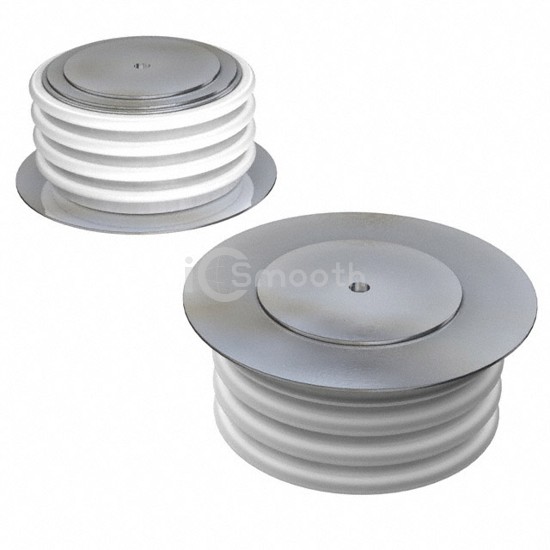

VS-SD1500C12L - Vishay General Semiconductor - Diodes Division - Diodes - Rectifiers - Single
REF: VS-SD1500C12L Vishay General Semiconductor - Diodes Division
VS-SD1500C12L

Vishay General Semiconductor - Diodes Division

DIODE GP 1.2KV 1600A DO200AB

VS-SD1500C12L is a Diodes - Rectifiers - Single manufactured by Vishay General Semiconductor - Diodes Division. DIODE GP 1.2KV 1600A DO200AB. Key specifications: mounting type Clamp On, package / case DO-200AB, B-PUK.

Datasheet Request a Quote

In Stock: 1,920

Specifications

13 parameters
Product StatusActive
Diode TypeStandard
Voltage - DC Reverse (Vr) (Max)1200 V
Current - Average Rectified (Io)1600A
Voltage - Forward (Vf) (Max) @ If1.64 V @ 3000 A
SpeedStandard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr)-
Current - Reverse Leakage @ Vr50 mA @ 1200 V
Capacitance @ Vr, F-
Mounting TypeClamp On
Package / CaseDO-200AB, B-PUK
Supplier Device PackageDO-200AB, B-PUK
Operating Temperature - Junction-
