VS-SD1100C32C

In Stock: 2,899

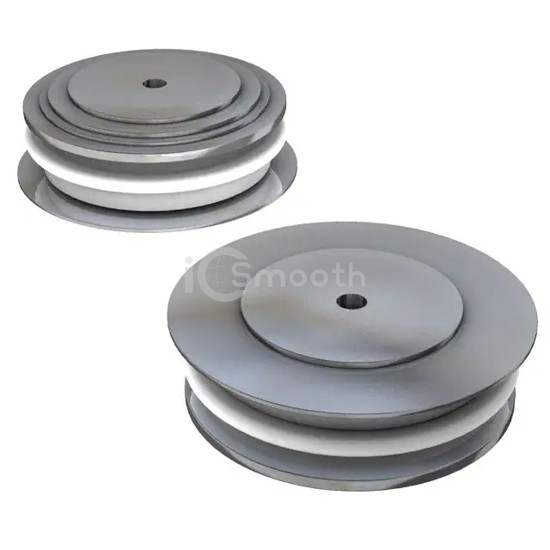

VS-SD1100C32C - Vishay General Semiconductor - Diodes Division - Diodes - Rectifiers - Single
REF: VS-SD1100C32C Vishay General Semiconductor - Diodes Division
VS-SD1100C32C

Vishay General Semiconductor - Diodes Division

DIODE GEN PURP 3.2KV 1100A B-43

VS-SD1100C32C is a Diodes - Rectifiers - Single manufactured by Vishay General Semiconductor - Diodes Division. DIODE GEN PURP 3.2KV 1100A B-43. Key specifications: mounting type Stud Mount, package / case DO-200AA, A-PUK.

Datasheet Request a Quote

In Stock: 2,899

Specifications

13 parameters
Product StatusActive
Diode TypeStandard
Voltage - DC Reverse (Vr) (Max)3200 V
Current - Average Rectified (Io)1100A
Voltage - Forward (Vf) (Max) @ If1.44 V @ 1500 A
SpeedStandard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr)-
Current - Reverse Leakage @ Vr35 mA @ 3200 V
Capacitance @ Vr, F-
Mounting TypeStud Mount
Package / CaseDO-200AA, A-PUK
Supplier Device PackageB-43, Hockey PUK
Operating Temperature - Junction-
