VS-HFA320NJ40CPBF

In Stock: 5,326
VS-HFA320NJ40CPBF - Vishay General Semiconductor - Diodes Division - Diodes - Rectifiers - Arrays
REF: VS-HFA320NJ40CPBF Vishay General Semiconductor - Diodes Division

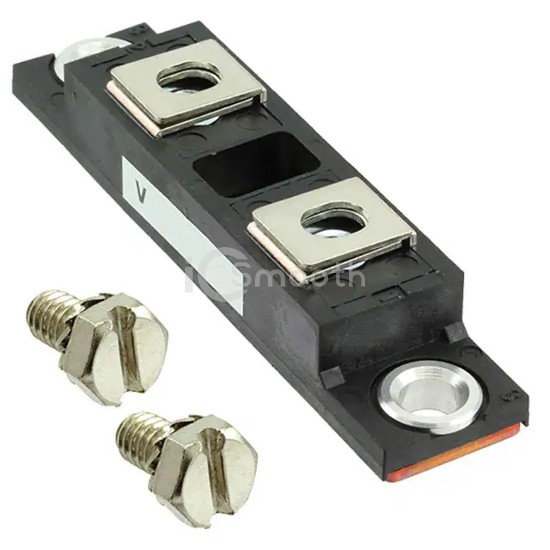

VS-HFA320NJ40CPBF

Vishay General Semiconductor - Diodes Division

DIODE MODULE 400V 320A TO244

VS-HFA320NJ40CPBF is a Diodes - Rectifiers - Arrays manufactured by Vishay General Semiconductor - Diodes Division. DIODE MODULE 400V 320A TO244. Key specifications: mounting type Chassis Mount, package / case TO-244AB.

Datasheet Request a Quote

In Stock: 5,326

Specifications

13 parameters
Product StatusActive
Diode Configuration1 Pair Common Cathode
Diode TypeStandard
Voltage - DC Reverse (Vr) (Max)400 V
Current - Average Rectified (Io) (per Diode)420A
Voltage - Forward (Vf) (Max) @ If1.54 V @ 320 A
SpeedFast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)140 ns
Current - Reverse Leakage @ Vr3 mA @ 400 V
Operating Temperature - Junction-
Mounting TypeChassis Mount
Package / CaseTO-244AB
Supplier Device PackageTO-244AB
