VS-GT90SA120U

In Stock: 106

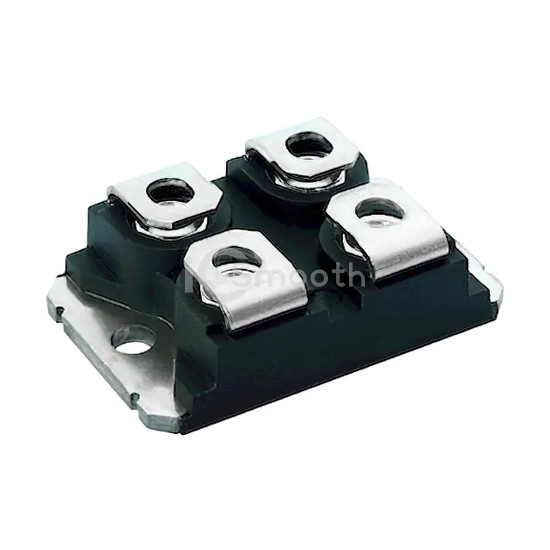

VS-GT90SA120U - Vishay General Semiconductor - Diodes Division - Transistors - IGBTs - Modules
REF: VS-GT90SA120U Vishay General Semiconductor - Diodes Division
VS-GT90SA120U

Vishay General Semiconductor - Diodes Division

SOT-227 - SINGLE SWITCH IGBT

VS-GT90SA120U is a Transistors - IGBTs - Modules manufactured by Vishay General Semiconductor - Diodes Division. SOT-227 - SINGLE SWITCH IGBT. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case SOT-227-4, miniBLOC, current - collector (ic) (max) 169 A.

Datasheet Request a Quote

In Stock: 106

Specifications

15 parameters
Product StatusActive
IGBT TypeTrench Field Stop
ConfigurationSingle
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)169 A
Power - Max781 W
Vce(on) (Max) @ Vge, Ic2.6V @ 15V, 75A
Current - Collector Cutoff (Max)100 µA
Input Capacitance (Cies) @ Vce-
InputStandard
NTC ThermistorNo
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeChassis Mount
Package / CaseSOT-227-4, miniBLOC
Supplier Device PackageSOT-227
