VS-GT400TD60S

In Stock: 5,999

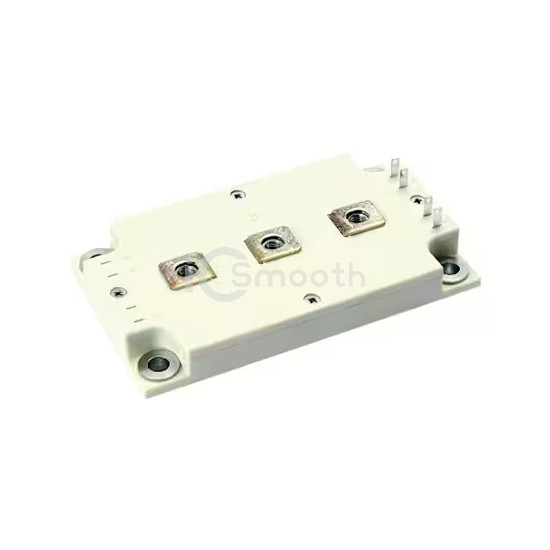

VS-GT400TD60S - Vishay General Semiconductor - Diodes Division - Transistors - IGBTs - Modules
REF: VS-GT400TD60S Vishay General Semiconductor - Diodes Division
VS-GT400TD60S

Vishay General Semiconductor - Diodes Division

IGBT MOD 600V 758A INT-A-PAK

VS-GT400TD60S is a Transistors - IGBTs - Modules manufactured by Vishay General Semiconductor - Diodes Division. IGBT MOD 600V 758A INT-A-PAK. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 175°C (TJ), package / case Module, current - collector (ic) (max) 711 A.

Datasheet Request a Quote

In Stock: 5,999

Specifications

15 parameters
Product StatusActive
IGBT TypeTrench Field Stop
ConfigurationHalf Bridge
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)711 A
Power - Max1364 W
Vce(on) (Max) @ Vge, Ic1.4V @ 15V, 400A
Current - Collector Cutoff (Max)300 µA
Input Capacitance (Cies) @ Vce-
InputStandard
NTC ThermistorNo
Operating Temperature-40°C ~ 175°C (TJ)
Mounting TypeChassis Mount
Package / CaseModule
Supplier Device PackageINT-A-PAK
