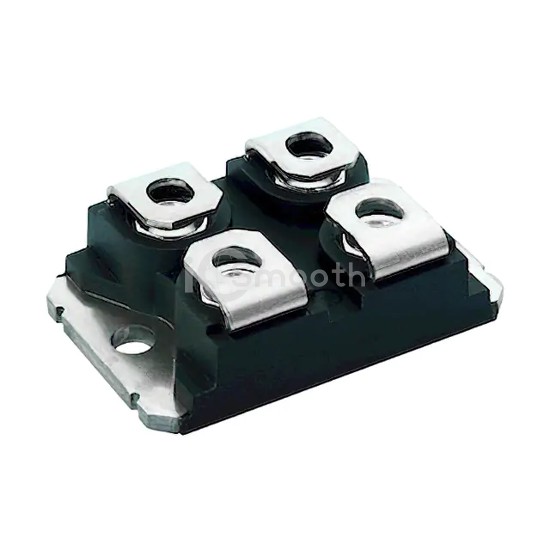

VS-GT250SA60S

In Stock: 2,640
VS-GT250SA60S - Vishay General Semiconductor - Diodes Division - Transistors - IGBTs - Modules
REF: VS-GT250SA60S Vishay General Semiconductor - Diodes Division
VS-GT250SA60S

Vishay General Semiconductor - Diodes Division

IGBT MOD 600V 380A 893W SOT227

VS-GT250SA60S is a Transistors - IGBTs - Modules manufactured by Vishay General Semiconductor - Diodes Division. IGBT MOD 600V 380A 893W SOT227. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 175°C (TJ), package / case SOT-227-4, miniBLOC, current - collector (ic) (max) 359 A.

Datasheet Request a Quote

In Stock: 2,640

Specifications

15 parameters
Product StatusActive
IGBT TypeTrench Field Stop
ConfigurationSingle
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)359 A
Power - Max750 W
Vce(on) (Max) @ Vge, Ic1.16V @ 15V, 100A
Current - Collector Cutoff (Max)100 µA
Input Capacitance (Cies) @ Vce24.2 nF @ 25 V
InputStandard
NTC ThermistorNo
Operating Temperature-40°C ~ 175°C (TJ)
Mounting TypeChassis Mount
Package / CaseSOT-227-4, miniBLOC
Supplier Device PackageSOT-227
