VS-GB90DA60U

In Stock: 2,327
VS-GB90DA60U - Vishay General Semiconductor - Diodes Division - Transistors - IGBTs - Modules
REF: VS-GB90DA60U Vishay General Semiconductor - Diodes Division

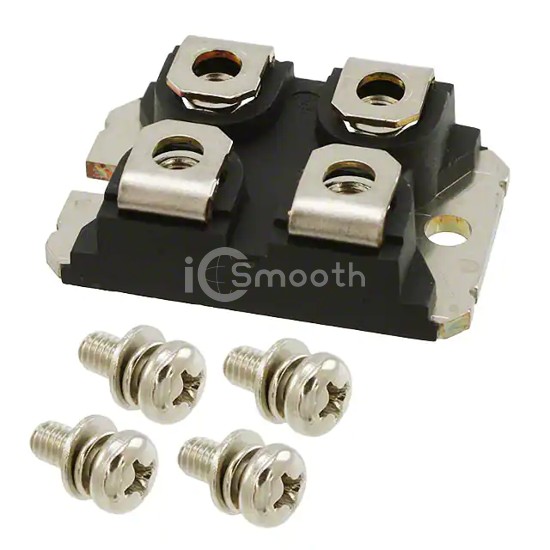

VS-GB90DA60U

Vishay General Semiconductor - Diodes Division

IGBT MOD 600V 147A 625W SOT227

VS-GB90DA60U is a Transistors - IGBTs - Modules manufactured by Vishay General Semiconductor - Diodes Division. IGBT MOD 600V 147A 625W SOT227. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case SOT-227-4, current - collector (ic) (max) 147 A.

Datasheet Request a Quote

In Stock: 2,327

Specifications

15 parameters
Product StatusObsolete
IGBT TypeNPT
ConfigurationSingle
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)147 A
Power - Max625 W
Vce(on) (Max) @ Vge, Ic2.8V @ 15V, 100A
Current - Collector Cutoff (Max)100 µA
Input Capacitance (Cies) @ Vce-
InputStandard
NTC ThermistorNo
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeChassis Mount
Package / CaseSOT-227-4
Supplier Device PackageSOT-227
