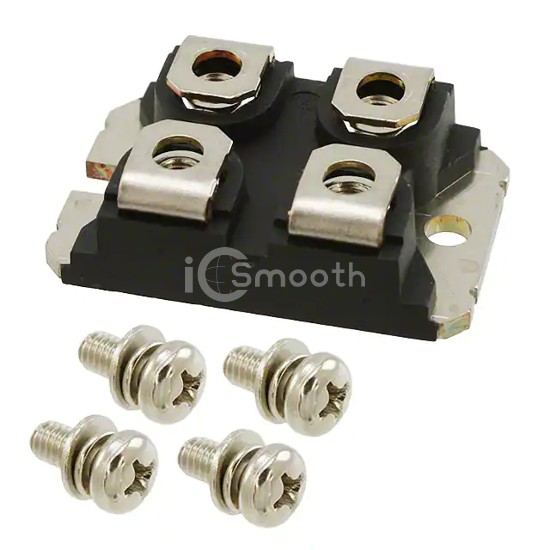

VS-GA250SA60S

In Stock: 2,214
VS-GA250SA60S - Vishay General Semiconductor - Diodes Division - Transistors - IGBTs - Modules
REF: VS-GA250SA60S Vishay General Semiconductor - Diodes Division
VS-GA250SA60S

Vishay General Semiconductor - Diodes Division

IGBT MOD 600V 400A 961W SOT227

VS-GA250SA60S is a Transistors - IGBTs - Modules manufactured by Vishay General Semiconductor - Diodes Division. IGBT MOD 600V 400A 961W SOT227. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case SOT-227-4, current - collector (ic) (max) 400 A.

Request a Quote

In Stock: 2,214

Specifications

15 parameters
Product StatusObsolete
IGBT Type-
ConfigurationSingle
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)400 A
Power - Max961 W
Vce(on) (Max) @ Vge, Ic1.66V @ 15V, 200A
Current - Collector Cutoff (Max)1 mA
Input Capacitance (Cies) @ Vce16.25 nF @ 30 V
InputStandard
NTC ThermistorNo
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeChassis Mount
Package / CaseSOT-227-4
Supplier Device PackageSOT-227
