VS-ETL015Y120H

In Stock: 2,544

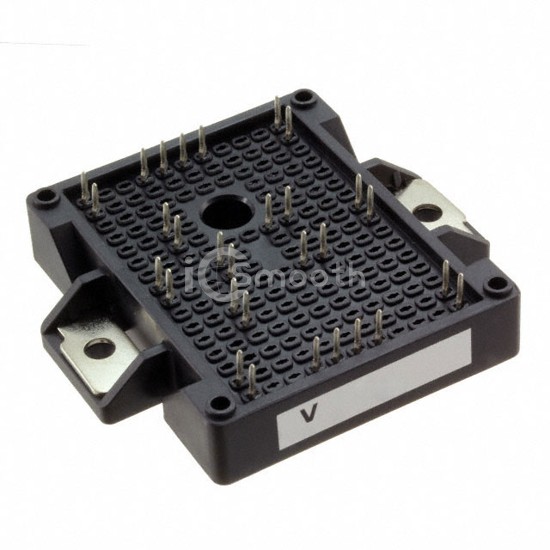

VS-ETL015Y120H - Vishay General Semiconductor - Diodes Division - Transistors - IGBTs - Modules
REF: VS-ETL015Y120H Vishay General Semiconductor - Diodes Division
VS-ETL015Y120H

Vishay General Semiconductor - Diodes Division

IGBT MOD 1200V 22A 89W EMIPAK-2B

VS-ETL015Y120H is a Transistors - IGBTs - Modules manufactured by Vishay General Semiconductor - Diodes Division. IGBT MOD 1200V 22A 89W EMIPAK-2B. Key specifications: mounting type Chassis Mount, operating temperature 150°C (TJ), package / case EMIPAK-2B, current - collector (ic) (max) 22 A.

Datasheet Request a Quote

In Stock: 2,544

Specifications

15 parameters
Product StatusActive
IGBT TypeTrench
Configuration-
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)22 A
Power - Max89 W
Vce(on) (Max) @ Vge, Ic3.03V @ 15V, 15A
Current - Collector Cutoff (Max)75 µA
Input Capacitance (Cies) @ Vce1.07 nF @ 30 V
InputStandard
NTC ThermistorYes
Operating Temperature150°C (TJ)
Mounting TypeChassis Mount
Package / CaseEMIPAK-2B
Supplier Device PackageEMIPAK-2B
