VS-ETF075Y60U

In Stock: 5,225

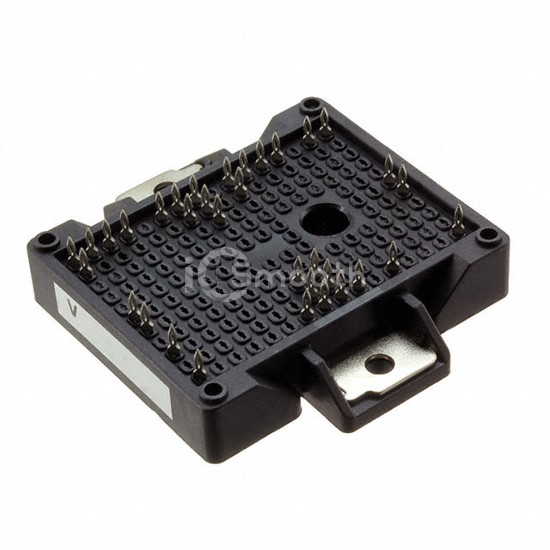

VS-ETF075Y60U - Vishay General Semiconductor - Diodes Division - Transistors - IGBTs - Modules
REF: VS-ETF075Y60U Vishay General Semiconductor - Diodes Division
VS-ETF075Y60U

Vishay General Semiconductor - Diodes Division

IGBT MOD 600V 109A EMIPAK-2B

VS-ETF075Y60U is a Transistors - IGBTs - Modules manufactured by Vishay General Semiconductor - Diodes Division. IGBT MOD 600V 109A EMIPAK-2B. Key specifications: mounting type Chassis Mount, operating temperature 175°C (TJ), package / case EMIPAK-2B, current - collector (ic) (max) 100 A.

Datasheet Request a Quote

In Stock: 5,225

Specifications

15 parameters
Product StatusActive
IGBT TypeTrench
ConfigurationThree Level Inverter
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)100 A
Power - Max294 W
Vce(on) (Max) @ Vge, Ic1.93V @ 15V, 75A
Current - Collector Cutoff (Max)100 µA
Input Capacitance (Cies) @ Vce4.44 nF @ 30 V
InputStandard
NTC ThermistorYes
Operating Temperature175°C (TJ)
Mounting TypeChassis Mount
Package / CaseEMIPAK-2B
Supplier Device PackageEMIPAK-2B
