VS-ENQ030L120S

In Stock: 9,841
VS-ENQ030L120S - Vishay General Semiconductor - Diodes Division - Transistors - IGBTs - Modules
REF: VS-ENQ030L120S Vishay General Semiconductor - Diodes Division

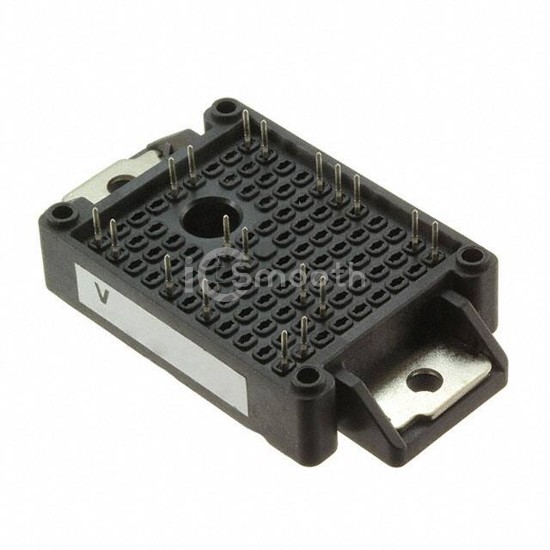

VS-ENQ030L120S

Vishay General Semiconductor - Diodes Division

IGBT MOD 1200V 61A EMIPAK-1B

VS-ENQ030L120S is a Transistors - IGBTs - Modules manufactured by Vishay General Semiconductor - Diodes Division. IGBT MOD 1200V 61A EMIPAK-1B. Key specifications: mounting type Chassis Mount, operating temperature 150°C (TJ), package / case EMIPAK-1B, current - collector (ic) (max) 61 A.

Datasheet Request a Quote

In Stock: 9,841

Specifications

15 parameters
Product StatusActive
IGBT TypeTrench
ConfigurationThree Level Inverter
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)61 A
Power - Max216 W
Vce(on) (Max) @ Vge, Ic2.52V @ 15V, 30A
Current - Collector Cutoff (Max)230 µA
Input Capacitance (Cies) @ Vce3.34 nF @ 30 V
InputStandard
NTC ThermistorYes
Operating Temperature150°C (TJ)
Mounting TypeChassis Mount
Package / CaseEMIPAK-1B
Supplier Device PackageEMIPAK-1B
