VS-E5TH3012-N3

In Stock: 1,003

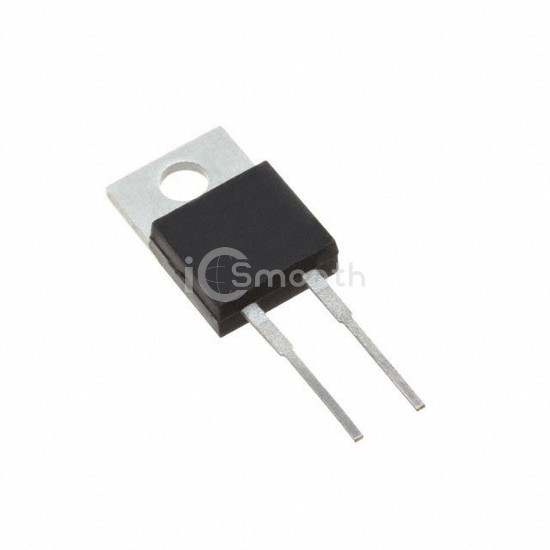

VS-E5TH3012-N3 - Vishay General Semiconductor - Diodes Division - Diodes - Rectifiers - Single
REF: VS-E5TH3012-N3 Vishay General Semiconductor - Diodes Division
VS-E5TH3012-N3

Vishay General Semiconductor - Diodes Division

DIODE FREDS 1200V 30A TO-220

VS-E5TH3012-N3 is a Diodes - Rectifiers - Single manufactured by Vishay General Semiconductor - Diodes Division. DIODE FREDS 1200V 30A TO-220. Key specifications: mounting type Through Hole, package / case TO-220-2.

Datasheet Request a Quote

In Stock: 1,003

Specifications

13 parameters
Product StatusObsolete
Diode TypeStandard
Voltage - DC Reverse (Vr) (Max)1200 V
Current - Average Rectified (Io)30A
Voltage - Forward (Vf) (Max) @ If2.3 V @ 30 A
SpeedFast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)113 ns
Current - Reverse Leakage @ Vr50 µA @ 1200 V
Capacitance @ Vr, F-
Mounting TypeThrough Hole
Package / CaseTO-220-2
Supplier Device PackageTO-220AC
Operating Temperature - Junction-55°C ~ 175°C
