VS-CZH6106FP-M3

In Stock: 177

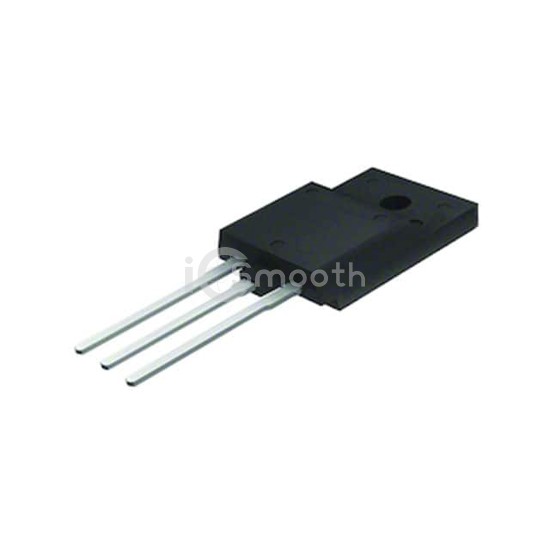

VS-CZH6106FP-M3 - Vishay General Semiconductor - Diodes Division - Diodes - Rectifiers - Arrays
REF: VS-CZH6106FP-M3 Vishay General Semiconductor - Diodes Division
VS-CZH6106FP-M3

Vishay General Semiconductor - Diodes Division

2X30A (COMMON CATHODE), 600V, FR

VS-CZH6106FP-M3 is a Diodes - Rectifiers - Arrays manufactured by Vishay General Semiconductor - Diodes Division. 2X30A (COMMON CATHODE), 600V, FR. Key specifications: mounting type Through Hole, package / case SC-94.

Datasheet Request a Quote

In Stock: 177

Specifications

13 parameters
Product StatusActive
Diode Configuration1 Pair Common Cathode
Diode TypeStandard
Voltage - DC Reverse (Vr) (Max)600 V
Current - Average Rectified (Io) (per Diode)30A
Voltage - Forward (Vf) (Max) @ If2.15 V @ 30 A
SpeedFast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)90 ns
Current - Reverse Leakage @ Vr10 µA @ 600 V
Operating Temperature - Junction-55°C ~ 175°C
Mounting TypeThrough Hole
Package / CaseSC-94
Supplier Device PackageTO-3PF
