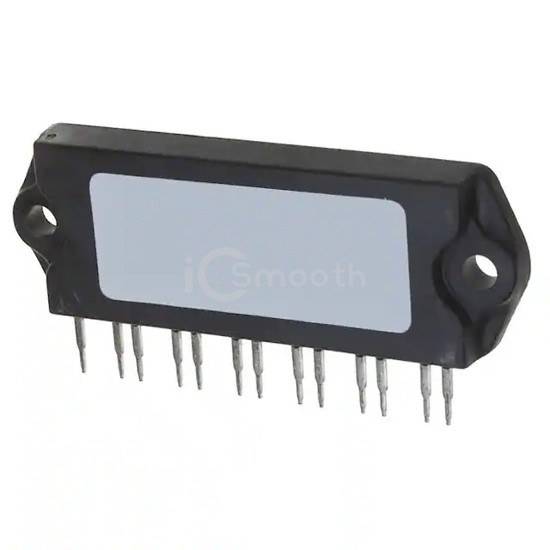

Name: VS-CPV362M4UPBF
Brand: Vishay General Semiconductor - Diodes Division
SKU: VS-CPV362M4UPBF
Availability: InStock

REF: VS-CPV362M4UPBF Vishay General Semiconductor - Diodes Division

VS-CPV362M4UPBF

Vishay General Semiconductor - Diodes Division

IGBT MODULE 600V 7.2A 23W IMS-2

VS-CPV362M4UPBF is a Transistors - IGBTs - Modules manufactured by Vishay General Semiconductor - Diodes Division. IGBT MODULE 600V 7.2A 23W IMS-2. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C (TJ), package / case 19-SIP (13 Leads), IMS-2, current - collector (ic) (max) 7.2 A.

Request a Quote

In Stock: 3,197

Specifications

15 parameters

Product Status	Obsolete
IGBT Type	-
Configuration	-
Voltage - Collector Emitter Breakdown (Max)	600 V
Current - Collector (Ic) (Max)	7.2 A
Power - Max	23 W
Vce(on) (Max) @ Vge, Ic	2.2V @ 15V, 3.9A
Current - Collector Cutoff (Max)	250 µA

Input Capacitance (Cies) @ Vce	530 pF @ 30 V
Input	Standard
NTC Thermistor	No
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	19-SIP (13 Leads), IMS-2
Supplier Device Package	IMS-2
