VS-CPU3006L-M3

In Stock: 6,699

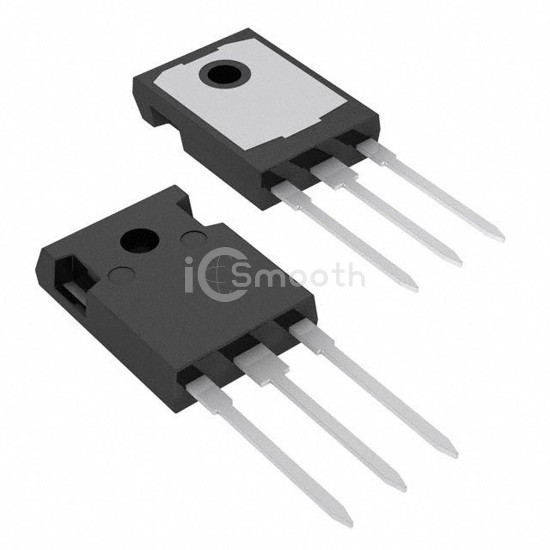

VS-CPU3006L-M3 - Vishay General Semiconductor - Diodes Division - Diodes - Rectifiers - Arrays
REF: VS-CPU3006L-M3 Vishay General Semiconductor - Diodes Division
VS-CPU3006L-M3

Vishay General Semiconductor - Diodes Division

DIODE STANDARD 600V 15A TO247

VS-CPU3006L-M3 is a Diodes - Rectifiers - Arrays manufactured by Vishay General Semiconductor - Diodes Division. DIODE STANDARD 600V 15A TO247. Key specifications: mounting type Through Hole, package / case TO-247-3.

Request a Quote

In Stock: 6,699

Specifications

13 parameters
Product StatusObsolete
Diode Configuration1 Pair Common Cathode
Diode TypeStandard
Voltage - DC Reverse (Vr) (Max)600 V
Current - Average Rectified (Io) (per Diode)15A
Voltage - Forward (Vf) (Max) @ If1.9 V @ 15 A
SpeedFast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)36 ns
Current - Reverse Leakage @ Vr15 µA @ 600 V
Operating Temperature - Junction-65°C ~ 175°C
Mounting TypeThrough Hole
Package / CaseTO-247-3
Supplier Device PackageTO-247-3
