Name: VS-80RIA40
Brand: Vishay General Semiconductor - Diodes Division
SKU: VS-80RIA40
Price: 27.07 USD
Availability: InStock

REF: VS-80RIA40 Vishay General Semiconductor - Diodes Division

VS-80RIA40

Vishay General Semiconductor - Diodes Division

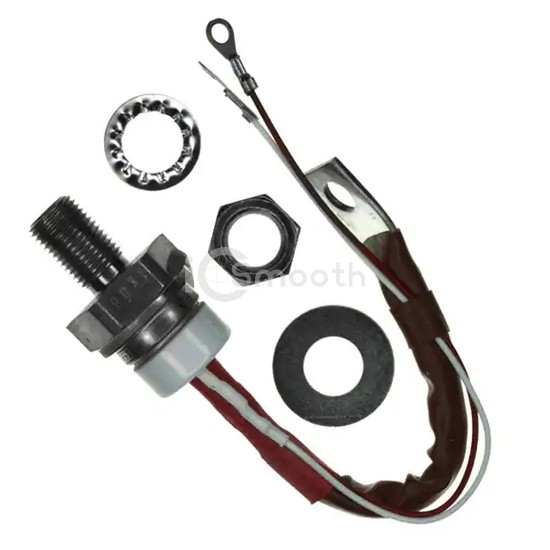

SCR 400V 125A TO209AC

VS-80RIA40 is a Thyristors - SCRs manufactured by Vishay General Semiconductor - Diodes Division. SCR 400V 125A TO209AC. Key specifications: mounting type Chassis, Stud Mount, operating temperature -40°C ~ 125°C, package / case TO-209AC, TO-94-4, Stud.

Datasheet Request a Quote

In Stock: 6,135

Specifications

15 parameters

Product Status	Active
Voltage - Off State	400 V
Voltage - Gate Trigger (Vgt) (Max)	2.5 V
Current - Gate Trigger (Igt) (Max)	120 mA
Voltage - On State (Vtm) (Max)	1.6 V
Current - On State (It (AV)) (Max)	80 A
Current - On State (It (RMS)) (Max)	125 A
Current - Hold (Ih) (Max)	200 mA

Current - Off State (Max)	15 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	1900A, 1990A
SCR Type	Standard Recovery
Operating Temperature	-40°C ~ 125°C
Mounting Type	Chassis, Stud Mount
Package / Case	TO-209AC, TO-94-4, Stud
Supplier Device Package	TO-209AC (TO-94)
