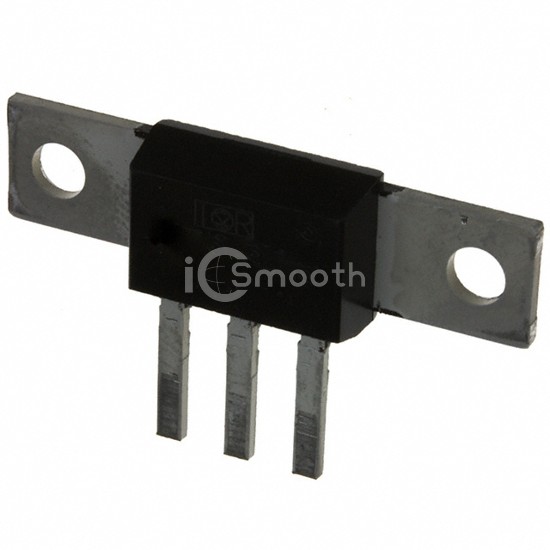

VS-80CNQ045APBF

In Stock: 1,240
VS-80CNQ045APBF - Vishay General Semiconductor - Diodes Division - Diodes - Rectifiers - Arrays
REF: VS-80CNQ045APBF Vishay General Semiconductor - Diodes Division
VS-80CNQ045APBF

Vishay General Semiconductor - Diodes Division

DIODE ARRAY SCHOTTKY 45V D618

VS-80CNQ045APBF is a Diodes - Rectifiers - Arrays manufactured by Vishay General Semiconductor - Diodes Division. DIODE ARRAY SCHOTTKY 45V D618. Key specifications: mounting type Chassis Mount, package / case D-61-8.

Datasheet Request a Quote

In Stock: 1,240

Specifications

13 parameters
Product StatusObsolete
Diode Configuration1 Pair Common Cathode
Diode TypeSchottky
Voltage - DC Reverse (Vr) (Max)45 V
Current - Average Rectified (Io) (per Diode)40A
Voltage - Forward (Vf) (Max) @ If520 mV @ 40 A
SpeedFast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)-
Current - Reverse Leakage @ Vr5 mA @ 45 V
Operating Temperature - Junction-55°C ~ 150°C
Mounting TypeChassis Mount
Package / CaseD-61-8
Supplier Device PackageD-61-8
