Name: VS-70TPS16PBF
Brand: Vishay General Semiconductor - Diodes Division
SKU: VS-70TPS16PBF
Price: 5.30 USD
Availability: InStock

REF: VS-70TPS16PBF Vishay General Semiconductor - Diodes Division

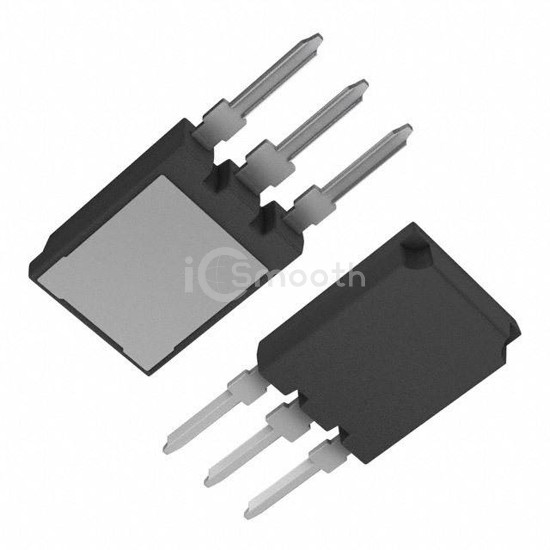

VS-70TPS16PBF

Vishay General Semiconductor - Diodes Division

SCR 1.6KV 75A SUPER-247

VS-70TPS16PBF is a Thyristors - SCRs manufactured by Vishay General Semiconductor - Diodes Division. SCR 1.6KV 75A SUPER-247. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, package / case TO-274AA.

Datasheet Request a Quote

In Stock: 9,383

Specifications

15 parameters

Product Status	Active
Voltage - Off State	1.6 kV
Voltage - Gate Trigger (Vgt) (Max)	1.5 V
Current - Gate Trigger (Igt) (Max)	100 mA
Voltage - On State (Vtm) (Max)	1.4 V
Current - On State (It (AV)) (Max)	70 A
Current - On State (It (RMS)) (Max)	75 A
Current - Hold (Ih) (Max)	200 mA

Current - Off State (Max)	1 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	1400A @ 50Hz
SCR Type	Standard Recovery
Operating Temperature	-40°C ~ 125°C
Mounting Type	Through Hole
Package / Case	TO-274AA
Supplier Device Package	SUPER-247™ (TO-274AA)
