Name: VS-40TPS12LHM3
Brand: Vishay General Semiconductor - Diodes Division
SKU: VS-40TPS12LHM3
Price: 6.24 USD
Availability: InStock

REF: VS-40TPS12LHM3 Vishay General Semiconductor - Diodes Division

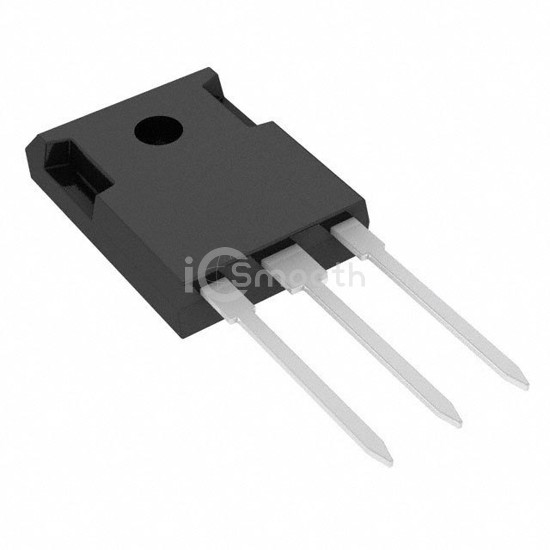

VS-40TPS12LHM3

Vishay General Semiconductor - Diodes Division

SCR 1.2KV 55A TO247AD

VS-40TPS12LHM3 is a Thyristors - SCRs manufactured by Vishay General Semiconductor - Diodes Division. SCR 1.2KV 55A TO247AD. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C (TJ), package / case TO-247-3.

Datasheet Request a Quote

In Stock: 1,000

Tiered Pricing USD

1+ $6.2400 —

50+ $3.3070 -47%

100+ $3.0241 -52%

500+ $2.5287 -59%

1,000+ $2.4625 -61% BEST

Specifications

15 parameters

Product Status	Active
Voltage - Off State	1.2 kV
Voltage - Gate Trigger (Vgt) (Max)	1.7 V
Current - Gate Trigger (Igt) (Max)	150 mA
Voltage - On State (Vtm) (Max)	1.85 V
Current - On State (It (AV)) (Max)	35 A
Current - On State (It (RMS)) (Max)	55 A
Current - Hold (Ih) (Max)	300 mA

Current - Off State (Max)	500 µA
Current - Non Rep. Surge 50, 60Hz (Itsm)	600A @ 50Hz
SCR Type	Standard Recovery
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-247-3
Supplier Device Package	TO-247AD
