Name: VS-40MT120PHAPBF
Brand: Vishay General Semiconductor - Diodes Division
SKU: VS-40MT120PHAPBF
Price: 63.77 USD
Availability: InStock

REF: VS-40MT120PHAPBF Vishay General Semiconductor - Diodes Division

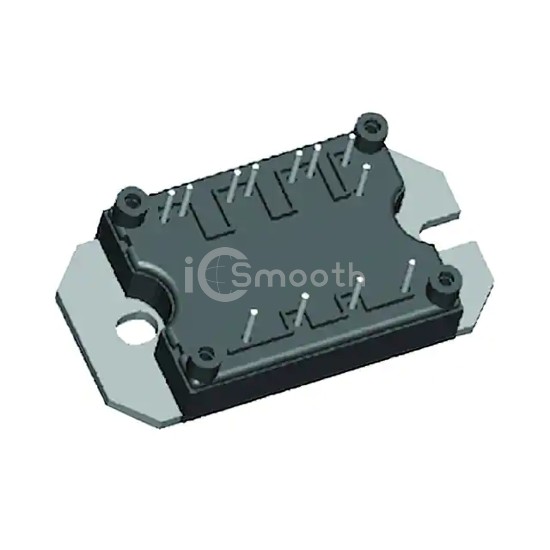

VS-40MT120PHAPBF

Vishay General Semiconductor - Diodes Division

MTP - HALF BRIDGE IGBT

VS-40MT120PHAPBF is a Transistors - IGBTs - Modules manufactured by Vishay General Semiconductor - Diodes Division. MTP - HALF BRIDGE IGBT. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C (TJ), package / case 12-MTP Module, current - collector (ic) (max) 75 A.

Datasheet Request a Quote

In Stock: 1,539

Specifications

15 parameters

Product Status	Active
IGBT Type	Trench Field Stop
Configuration	Half Bridge
Voltage - Collector Emitter Breakdown (Max)	1200 V
Current - Collector (Ic) (Max)	75 A
Power - Max	305 W
Vce(on) (Max) @ Vge, Ic	2.65V @ 15V, 40A
Current - Collector Cutoff (Max)	50 µA

Input Capacitance (Cies) @ Vce	3.2 nF @ 25 V
Input	Standard
NTC Thermistor	No
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	12-MTP Module
Supplier Device Package	12-MTP
