Name: VS-309UR120
Brand: Vishay General Semiconductor - Diodes Division
SKU: VS-309UR120
Availability: InStock

REF: VS-309UR120 Vishay General Semiconductor - Diodes Division

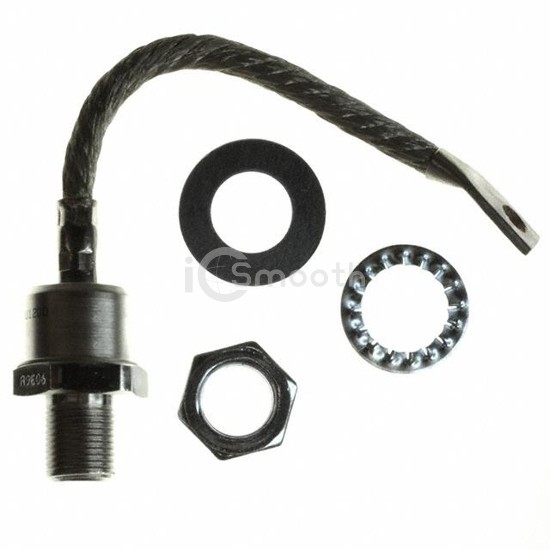

VS-309UR120

Vishay General Semiconductor - Diodes Division

DIODE GEN PURP 120V 330A DO205AB

VS-309UR120 is a Diodes - Rectifiers - Single manufactured by Vishay General Semiconductor - Diodes Division. DIODE GEN PURP 120V 330A DO205AB. Key specifications: mounting type Stud Mount, package / case DO-205AB, DO-9, Stud.

Datasheet Request a Quote

In Stock: 8,277

Specifications

13 parameters

Product Status	Active
Diode Type	Standard, Reverse Polarity
Voltage - DC Reverse (Vr) (Max)	120 V
Current - Average Rectified (Io)	330A
Voltage - Forward (Vf) (Max) @ If	1.22 V @ 942 A
Speed	Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr)	-

Current - Reverse Leakage @ Vr	15 mA @ 120 V
Capacitance @ Vr, F	-
Mounting Type	Stud Mount
Package / Case	DO-205AB, DO-9, Stud
Supplier Device Package	DO-205AB (DO-9)
Operating Temperature - Junction	-40°C ~ 180°C
