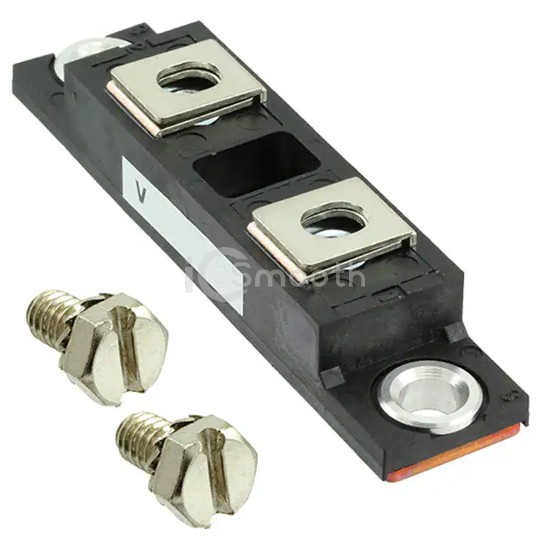

VS-303CNQ100PBF

In Stock: 6,388
VS-303CNQ100PBF - Vishay General Semiconductor - Diodes Division - Diodes - Rectifiers - Arrays
REF: VS-303CNQ100PBF Vishay General Semiconductor - Diodes Division
VS-303CNQ100PBF

Vishay General Semiconductor - Diodes Division

DIODE ARRAY SCHOTTKY 100V TO244

VS-303CNQ100PBF is a Diodes - Rectifiers - Arrays manufactured by Vishay General Semiconductor - Diodes Division. DIODE ARRAY SCHOTTKY 100V TO244. Key specifications: mounting type Chassis Mount, package / case TO-244AB.

Datasheet Request a Quote

In Stock: 6,388

Specifications

13 parameters
Product StatusActive
Diode Configuration1 Pair Common Cathode
Diode TypeSchottky
Voltage - DC Reverse (Vr) (Max)100 V
Current - Average Rectified (Io) (per Diode)150A
Voltage - Forward (Vf) (Max) @ If1.09 V @ 300 A
SpeedFast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)-
Current - Reverse Leakage @ Vr4.5 mA @ 100 V
Operating Temperature - Junction175°C (Max)
Mounting TypeChassis Mount
Package / CaseTO-244AB
Supplier Device PackageTO-244AB
