Name: VS-2N685
Brand: Vishay General Semiconductor - Diodes Division
SKU: VS-2N685
Price: 12.31 USD
Availability: InStock

REF: VS-2N685 Vishay General Semiconductor - Diodes Division

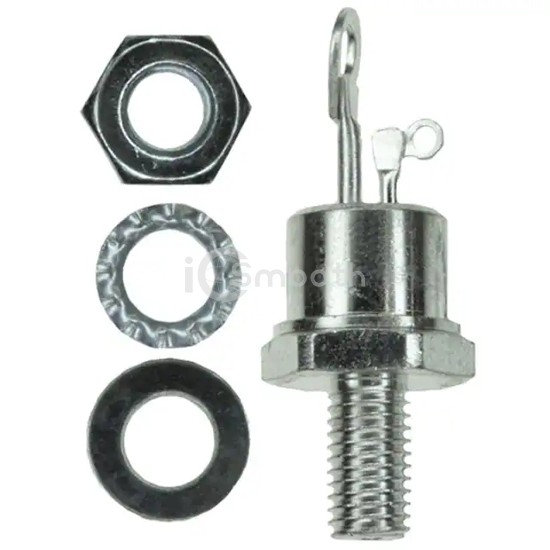

VS-2N685

Vishay General Semiconductor - Diodes Division

SCR 200V 25A TO208AA

VS-2N685 is a Thyristors - SCRs manufactured by Vishay General Semiconductor - Diodes Division. SCR 200V 25A TO208AA. Key specifications: mounting type Chassis, Stud Mount, operating temperature -65°C ~ 125°C, package / case TO-208AA, TO-48-3, Stud.

Datasheet Request a Quote

In Stock: 2,283

Tiered Pricing USD

1+ $12.3100 —

10+ $8.5700 -30%

100+ $6.4594 -48%

500+ $6.0375 -51% BEST

Specifications

15 parameters

Product Status	Active
Voltage - Off State	200 V
Voltage - Gate Trigger (Vgt) (Max)	2 V
Current - Gate Trigger (Igt) (Max)	40 mA
Voltage - On State (Vtm) (Max)	2 V
Current - On State (It (AV)) (Max)	16 A
Current - On State (It (RMS)) (Max)	25 A
Current - Hold (Ih) (Max)	20 mA

Current - Off State (Max)	6 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	145A, 150A
SCR Type	Standard Recovery
Operating Temperature	-65°C ~ 125°C
Mounting Type	Chassis, Stud Mount
Package / Case	TO-208AA, TO-48-3, Stud
Supplier Device Package	TO-208AA (TO-48)
